PowerFlex 753 VSD 400V | 5.0A 2.2kW | Flange Mount | Frame 2 by NHP
PowerFlex 753 VSD with 3-phase 415V input and 5.0A 2.2kW output—ideal for industrial and commercial motor control. Built for precision with dynamic braking and PID control, suitable for safety functions.
Sign in
Please login to continue to your account.

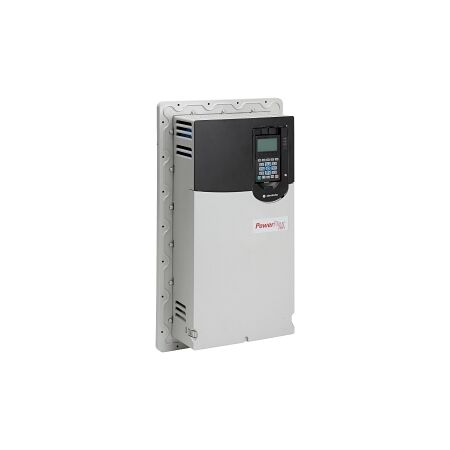

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 5.0A 2.2kW ND/HD Frame 2
Brand: NHP
SKU: 20F11FC5P0JA0NNNNN
Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD, Allen-Bradley VSD
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 2.2 kW
- Nominal output current I2_n: 5 A
- KW rating normal duty: 2.2 kW
- KW rating heavy duty: 2.2 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 2
- Degree of protection IP: IP20
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
- 3-phase input with a nominal voltage of 415V.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
- Professional installation by a qualified technician is recommended for optimal performance and safety.
- Industrial: Manufacturing, processing, and automation systems
- Commercial: HVAC systems, pumps, and fans
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Energy-efficient operation reduces overall energy consumption and carbon footprint.
1 year warranty against manufacturing defects.
The Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 5.0A 2.2kW ND/HD Frame 2 is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise motor control.
