Making Trade Life Easy!

Home/Electrical/Parts/Heating Elements/PowerFlex 753 VSD 400V | 5.0A 2.2kW ND | IP20 Frame 1 by NHP

Trade Discount 25%

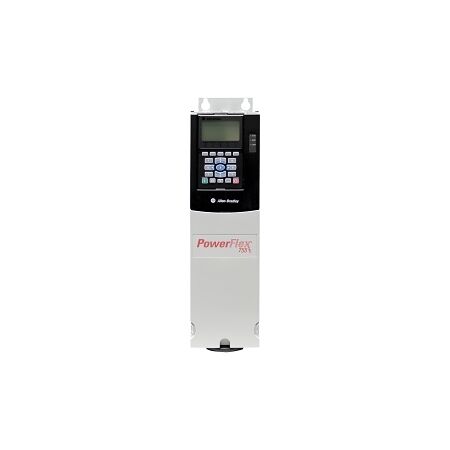

Allen-Bradley PowerFlex 753 VSD 400V IP20 5.0A 2.2kW ND or 3.5A 1.5kW HD Frame 1

PowerFlex 753 VSD 400V | 5.0A 2.2kW ND | IP20 Frame 1 by NHP

BRAND: NHP

SKU: 20F11RC5P0JA0NNNNN

$2,327.40 List price: $3,090.50

+ −

30 Days Return Delivery Options

Variable speed drive with 400V input and 5.0A 2.2kW normal duty—ideal for industrial motor control and commercial HVAC systems. Built for energy efficiency, with dynamic braking and precise PID control.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP20 5.0A 2.2kW ND or 3.5A 1.5kW HD Frame 1

Brand: NHP

SKU: 20F11RC5P0JA0NNNNN

Alternatively Known As: PowerFlex 753 Variable Speed Drive, Allen-Bradley VSD, Frequency Converter

Technical Specifications

Number of phases input: 3
Nominal input voltage: 415 V
Nominal output power AC: 2.2 kW
Nominal output current I2_n: 5 A
KW rating normal duty: 2.2 kW
KW rating heavy duty: 1.5 kW
Dynamic braking transistor: Yes
Control characteristic: PID
EMC version: Yes
Suitable for safety functions: Yes
Contains keypad: No
Frame size: 1
Degree of protection IP: IP20
Dimensions (H x L x W): 200mm x 150mm x 150mm
Weight: 5 kg

Key Features

Variable speed control for enhanced efficiency.
Dynamic braking transistor for improved performance.
PID control characteristic for precise operation.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Motor control applications in manufacturing and processing.
Commercial: HVAC systems and other variable speed applications.

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient operation reduces overall energy consumption.
Minimizes wear and tear on motors, extending their lifespan.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase, ideal for industrial and commercial applications.

20F11RC5P0JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf (20F11RC5P0JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf, 1,284 Kb) [Download]
