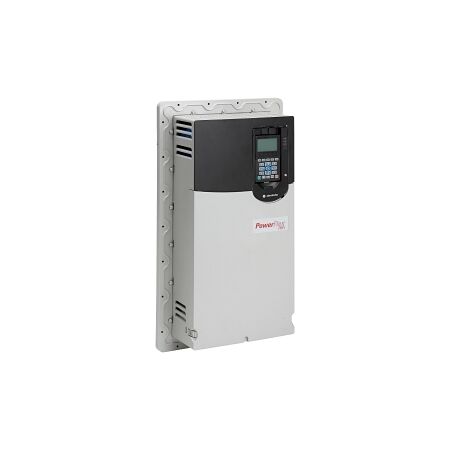

Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 85A 45kW ND or 72A 37kW HD Frame 5

PowerFlex 753 VSD 400V | 85A 45kW ND | Flange Mount | Frame 5 by NHP

BRAND: NHP

SKU: 20F11FC085JA0NNNNN

$15,477.00 List price: $20,551.40

+ −

30 Days Return Delivery Options

Variable speed drive with 85A 45kW normal duty and flange mount—ideal for industrial motor control. Built for manufacturing and processing plants, with dynamic braking and PID control for enhanced performance.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 85A 45kW ND or 72A 37kW HD Frame 5

Brand: NHP

SKU: 20F11FC085JA0NNNNN

Alternatively Known As: PowerFlex 753 Variable Speed Drive, Allen-Bradley VSD, Frequency Converter

Technical Specifications

Number of phases input: 3
Nominal input voltage: 415 V
Nominal output power AC: 45 kW
Nominal output current I2_n: 85 A
KW rating normal duty: 45 kW
KW rating heavy duty: 37 kW
Dynamic braking transistor: Yes
Control characteristic: PID
EMC version: Yes
Contains keypad: No
Frame size: 5
Degree of protection IP: IP20
Dimensions (H x L x W): 400mm x 200mm x 300mm
Weight: 25 kg

Key Features

Variable speed drive for precise motor control.
Dynamic braking transistor for enhanced performance.
PID control characteristic for improved process control.
Suitable for safety functions.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance and safety.

Applications

Industrial: Manufacturing, processing plants, and automation systems

Standards & Compliance

Complies with relevant Australian standards for electrical equipment.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 85A 45kW is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.

Non-Returnable & Non-Cancellable

20F11FC085JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf (20F11FC085JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf, 1,297 Kb) [Download]
