PowerFlex 753 VSD 600V | 41A 40 HP ND | IP20 Frame 5 by NHP
PowerFlex 753 VSD with 600V input and 41A output—ideal for industrial motor control. Built for efficiency with PID control, suitable for manufacturing and HVAC systems.
Sign in
Please login to continue to your account.

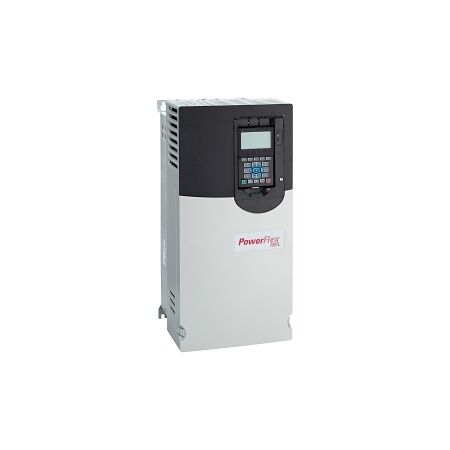

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 600V IP20 41A 40 HP ND or 32A 30 HP HD Frame 5
Brand: NHP
SKU: 20F11NE041JA0NNNNN
Alternatively Known As: PowerFlex 753 VSD, Variable Speed Drive, Frequency Converter
- Number of phases input: 3
- Nominal input voltage: 600 V
- Nominal output power AC: 30 kW
- Nominal output current I2_n: 41 A
- KW rating normal duty: 30 kW
- KW rating heavy duty: 22 kW
- Control characteristic: PID
- EMC version: Yes
- Contains keypad: No
- Frame size: 5
- Degree of protection IP: IP20
- Dimensions (H x L x W): 300mm x 400mm x 200mm
- Weight: 25 kg
- Variable speed control for enhanced efficiency.
- PID control characteristic for precise process control.
- Suitable for safety functions.
- Professional installation by a qualified technician is recommended for optimal performance and safety.
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
- Complies with relevant Australian standards for electrical equipment.
- Energy-efficient operation reduces overall power consumption.
1 year warranty against manufacturing defects.
The Allen-Bradley PowerFlex 753 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
