Trade Discount 25%

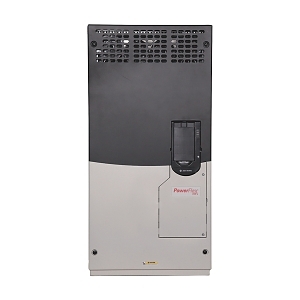

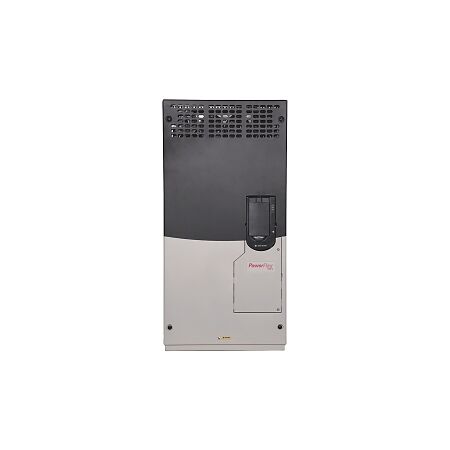

PowerFlex 753 VSD 690V | 212A 200kW ND | IP20 Frame 7 by NHP
Variable speed drive with 690V input and 212A output—ideal for industrial and commercial applications. Built for energy efficiency, with dynamic braking and safety functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 753 VSD 690V IP20 212A 200kW ND or 171A 160kW HD Frame 7
Brand: NHP
SKU: 20F1ANF212JA0NNNNN
Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 690 V
- Nominal output power AC: 200 kW
- Nominal output current: 171 A
- KW rating normal duty: 200 kW
- KW rating heavy duty: 160 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 7
- Degree of protection IP: IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 881.5mm x 349.6mm x 430mm
- Weight: 48 kg
Key Features
- Variable speed drive with PID control characteristic.
- Dynamic braking transistor included for enhanced performance.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Industrial: Manufacturing, processing plants, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
Standard warranty terms apply, please check with the supplier.
Available Now
The Allen-Bradley PowerFlex 753 VSD is available for immediate purchase, ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
