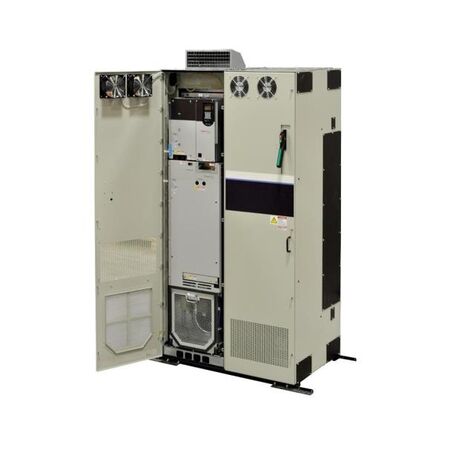

PowerFlex 755 AC Drive | 500KW Power | IP20 NEMA Type 1 | Air Cooled Design | by Allen-Bradley
The PowerFlex 755 AC Drive is a robust solution for industrial motor control, delivering 500KW power with an IP20 NEMA Type 1 enclosure. Designed for applications in manufacturing, HVAC, and pumping systems, this air-cooled drive features an enhanced LCD Human Interface Module for easy operation. Ideal for qualified electricians, it ensures compliance with electrical standards while optimizing energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 20G11BC910JN4NNNNN
- Power: 500 KW / 670 HP
- Current: 910 AMP
- Voltage: 400 VAC / 540 VDC
- Cooling: Air cooled
- Enclosure: IP20, NEMA Type 1
- Input: AC with precharge
- Filtering: Included
- Jumper: Installed
- Interface: Enhanced LCD HIM, full numeric display
- Internal Transistor: None
- Dimensions (H x L x W): 1200mm x 400mm x 600mm
- Weight: 150 kg
Key Features
- Air cooled design
- AC input with precharge
- IP20 rated enclosure with NEMA Type 1
- Filtering and jumper installed
- Enhanced LCD Human Interface Module (HIM) with full numeric display
- No internal transistor
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with high-power variable frequency drives to ensure safety and compliance with electrical standards.
Applications
- Industrial motor control and automation
- Manufacturing plants
- HVAC systems
- Pumping and ventilation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Air cooled design minimizes environmental impact by reducing the need for additional cooling systems
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 755 AC Drive 500KW is available for immediate purchase, ideal for industrial motor control and automation applications.
