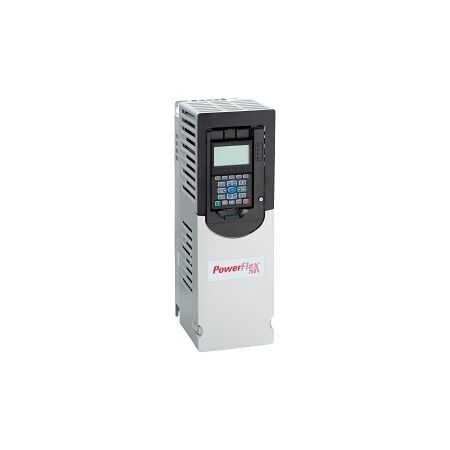

PowerFlex 755 VSD 400V | 11.5A 5.5kW | IP20 Frame 2 by NHP
Variable speed drive with 400V 3-phase input and 11.5A output—ideal for industrial motor control. Built for energy efficiency, with dynamic braking and PID control for precise speed management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 11 5A 5.5kW ND/HD Frame 2
Brand: NHP
SKU: 20G11NC011JA0NNNNN
Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 5.5 kW
- Nominal output current: 11.5 A
- KW rating (normal duty): 5.5 kW
- KW rating (heavy duty): 5.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 2
- Degree of protection (IP): IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 424.2mm x 212mm x 135mm
- Weight: 8 kg
Key Features
- 3-phase input with a nominal voltage of 400V.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 755 Variable Speed Drive is available now for immediate purchase, ideal for industrial and commercial applications.
