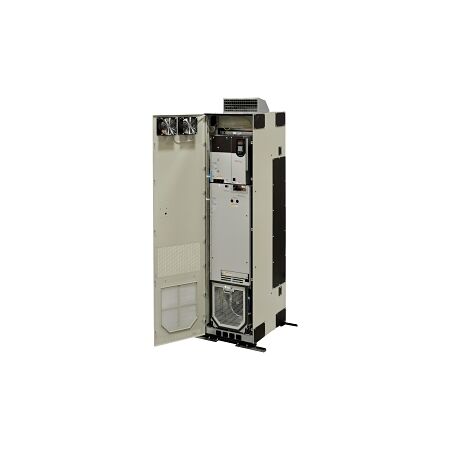

PowerFlex 755 VSD 400V | 770A 400kW | IP20 Rated | Frame 8 by NHP
Variable speed drive with 400V input and 400kW output—ideal for industrial and commercial applications. Built for precise speed control with PID characteristic, IP20 rated for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 ND 770A 400kW or HD 642A 355kW No Brake Frame 8
Brand: NHP
SKU: 20G1ALC770AN0NNNNN
Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 400 kW
- Nominal output current: 770 A
- KW rating normal duty: 400 kW
- KW rating heavy duty: 355 kW
- Dynamic braking transistor: No
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 8
- Degree of protection: IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Nominal input voltage of 400 V with a power output of 400 kW.
- IP20 rated for indoor use.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Manufacturing, processing plants, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 755 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise speed control.
Non-Returnable & Non-Cancellable
