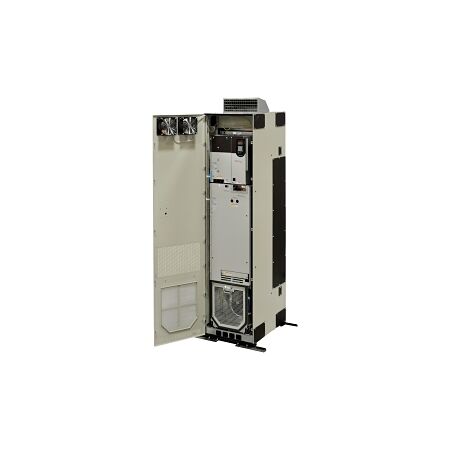

PowerFlex 755 VSD 400V | 800kW 1465A | IP20 Frame 9 by NHP

BRAND: NHP
SKU: 20G11BC1K4JN0NNNNN
$295,375.00 List price: $392,219.00
Free pick up (over 25 kg)
For delivery quote message
Variable speed drive with 800kW power and 1465A current—ideal for industrial and commercial applications. Built for energy efficiency, with PID control for precise process management.

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 ND 1465A 800kW HD 1090A 630kW No Brake Frame 9

Brand: NHP

SKU: 20G11BC1K4JN0NNNNN

Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Frequency Converter

Technical Specifications
  • Input Phases: 3
  • Nominal Input Voltage: 400 V
  • Nominal Output Power: 800 kW
  • Nominal Output Current: 1465 A
  • Dynamic Braking Transistor: No
  • Control Characteristic: PID
  • EMC Version: Yes
  • Integrated Motion Function: No
  • Frame Size: 9
  • Degree of Protection: IP20
  • Operating Temperature: -20 to 60 °C
  • Storage Temperature: -40 to 70 °C
  • Dimensions (H x L x W): 600mm x 400mm x 300mm
  • Weight: 50 kg
Key Features
  • Variable speed control for enhanced energy efficiency.
  • PID control characteristic for precise process control.
  • Suitable for safety functions.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing, processing plants, and automation systems
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Reduces energy consumption and operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 755 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring variable speed control.

Non-Returnable & Non-Cancellable

20G11BC1K4JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf (20G11BC1K4JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf, 1,382 Kb) [Download]
