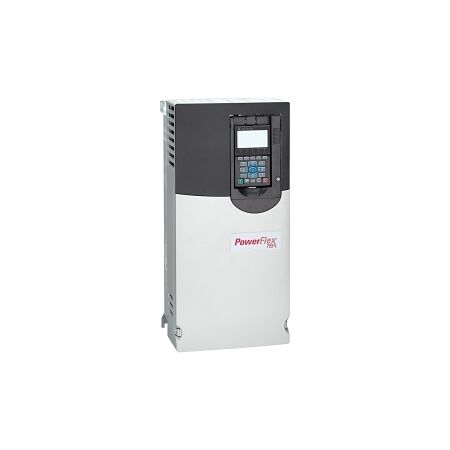

PowerFlex 755 VSD 480V | 8A 5HP | IP20 Frame 2 by NHP
Variable speed drive with 480V input and 8A output—ideal for industrial and commercial applications. Built for energy efficiency, with dynamic braking and PID control for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 755 VSD 480V IP20 8A 5HP ND/HD Frame 2
Brand: NHP
SKU: 20G11ND8P0AA0NNNNN
Alternatively Known As: PowerFlex 755 Variable Speed Drive, PF755 VSD, Allen-Bradley VSD
Technical Specifications
- Input Phases: 3
- Nominal Input Voltage: 480 V
- Nominal Output Power: 4 kW
- Nominal Output Current: 8 A
- Frame Size: 2
- Degree of Protection: IP20
- Operating Temperature: -20 to 60 °C
- Storage Temperature: -40 to 70 °C
- EMC Version: Yes
- Dimensions (H x L x W): 424mm x 212mm x 135mm
- Weight: 8 kg
Key Features
- Variable speed drive with PID control characteristic.
- Dynamic braking transistor included for enhanced performance.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Industrial: Manufacturing, processing, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
Standard warranty terms apply, please check with the manufacturer for details.
Available Now
The Allen-Bradley PowerFlex 755 VSD is available now for immediate purchase, ideal for various industrial and commercial applications.
