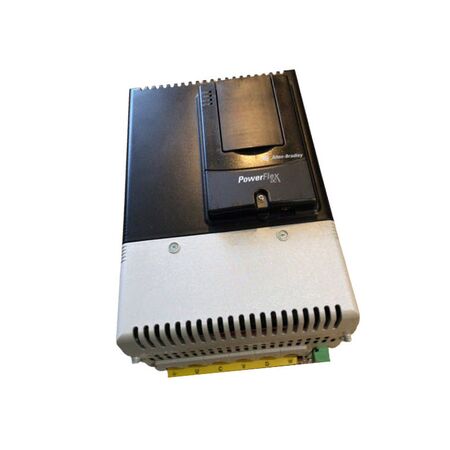

PowerFlex DC Drive 1.5 HP | 240VAC 3 Phase | IP20 Rated | NEMA/UL Type Open | by Allen-Bradley
The PowerFlex DC Drive 1.5 HP is designed for efficient industrial motor control, operating on a 240VAC 3 phase power supply with a 7 Amps current rating. Ideal for manufacturing automation and conveyor systems, this drive features an IP20 rated enclosure and conformal coating for enhanced durability, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 240 (208) VAC
- Phase: 3 Phase
- Current: 7 Amps
- Horsepower: 1.5 HP
- IP Rating: IP20
- Enclosure Type: NEMA/UL Type Open
- Conformal Coating: Yes
- Communication Module: None
- HIM: Not included
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- PowerFlex DC Drive with 1.5 HP motor capacity
- Operates on 240 (208) VAC, 3 phase power supply
- 7 Amps current rating
- IP20 rated enclosure for protection
- NEMA/UL Type Open design
- Conformal coating for enhanced durability
- No HIM (Human Interface Module) included
- Includes user manual
- No communication module included
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Manufacturing automation
- Conveyor systems
- Pumps and fans
- Material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency of motor operations
- Reduces power consumption through precise motor control
- Conformal coating extends product lifespan reducing waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex DC Drive 1.5 HP is available for immediate purchase, ideal for industrial and manufacturing motor control applications.
