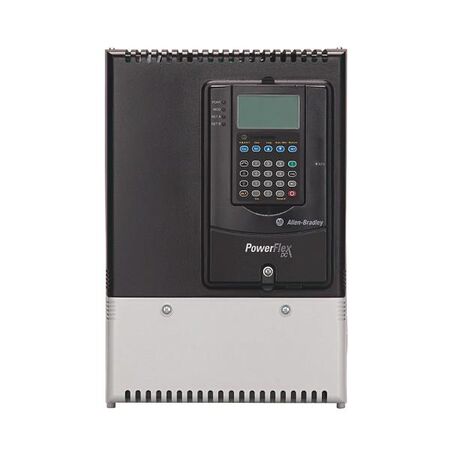

PowerFlex DC Drive 30HP | 230VAC Input | 110 Amps Current | IP20 Rated | by Allen-Bradley
The PowerFlex DC Drive is designed for industrial motor control, featuring a robust 230VAC input and a powerful 30HP output with a 110 Amps current rating. Ideal for manufacturing automation and conveyor systems, this drive includes regenerative braking capabilities and an IP20 protection rating, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Voltage: 230 VAC
- Phase: 3 Phase
- Current: 110 Amps
- Power: 30 HP / 22 kW
- Protection: IP20
- Enclosure: NEMA/UL Type Open
- Coating: Conformal Coating
- No HIM or communication module included
- Frame Type: A Frame
- Dimensions (H x L x W): 400mm x 300mm x 200mm
- Weight: 25 kg
Key Features
- 230 VAC input voltage
- 3 phase power supply
- 110 amps current rating
- 30 HP / 22 kW motor power
- Regenerative braking capability
- IP20 protection rating
- NEMA/UL Type Open enclosure
- Conformal coating for environmental protection
- No HIM (Human Interface Module) included
- No communication module included
- A frame design
Professional Installation Requirements
- Installation by a qualified electrician or automation professional is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Manufacturing automation
- Conveyor systems
- Pumps and fans
- Regenerative braking applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Regenerative braking reduces energy waste by feeding energy back to the power source.
- Conformal coating extends product life by protecting against moisture and contaminants.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex DC Drive 20P41AB110RA0NNN is available for immediate purchase, ideal for industrial motor control and automation applications.
