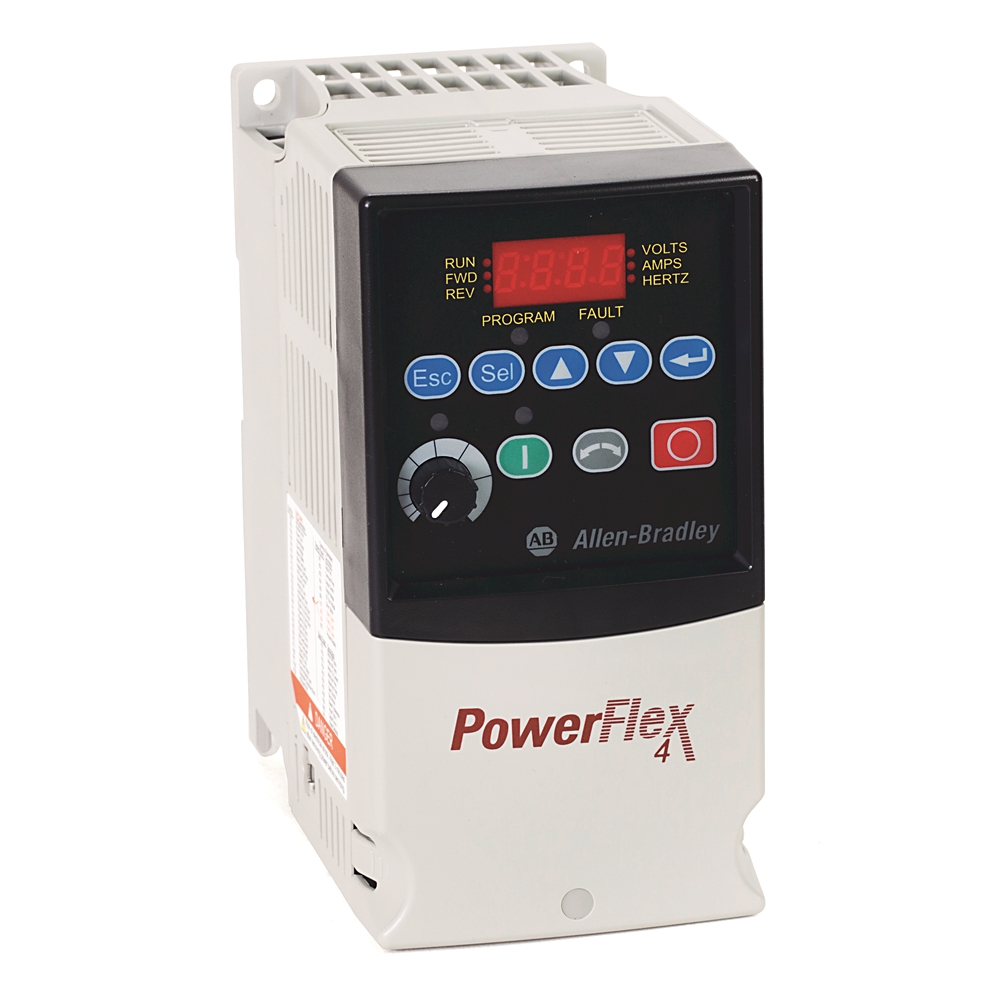

PowerFlex4 AC Drive 2.2 kW | 480VAC | 3-Phase | IP20 Protection by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22A-D6P0N104
$1,505.20 List price: $1,669.20
+ −
30 Days Return Delivery Options
PowerFlex4 AC Drive with 2.2 kW power rating and 480VAC input—ideal for industrial motor control and automation systems. Built for efficiency, with IP20 protection and easy operation via LED display and fixed digital keypad.

Product Name/Title: PowerFlex4 AC Drive 2.2 kW | 480VAC | 3-Phase | IP20 Protection by Allen-Bradley

Brand: Allen-Bradley

SKU: 22A-D6P0N104

Alternatively Known As: PowerFlex4 AC Drive 2.2 kW, Allen-Bradley AC Drive 22A-D6P0N104, 2.2 kW Variable Frequency Drive, VFD 2.2 kW 480VAC

Technical Specifications
  • Power: 2.2 kW (3 HP)
  • Input Voltage: 480VAC
  • Phase: 3-phase
  • Current: 6 Amps
  • Frame Size: B
  • Mounting: Panel Mount
  • Protection: IP20, NEMA/UL Type Open
  • Display: LED
  • Control Interface: Fixed Digital Keypad
  • Communication: RS485
  • Filter: No CE Compliant Filter
  • Dimensions (H x L x W): 150mm x 120mm x 100mm
  • Weight: 3 kg
Key Features
  • PowerFlex4 AC Drive with 2.2 kW (3 HP) power rating
  • Operates at 480VAC, 3-phase, 6 Amps
  • Frame Size B, Panel Mount with IP20 protection
  • NEMA/UL Type Open enclosure
  • LED Display and Fixed Digital Keypad for easy operation
  • RS485 communication interface
Professional Installation Requirements
  • Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
  • Industrial motor control
  • Automation systems
  • Manufacturing equipment
  • Conveyor systems
  • Pumps and fans
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improves motor lifespan by providing smooth start and stop
  • Reduces mechanical stress and maintenance needs
Warranty Information

1 year warranty against manufacturing defects.

Available Now

This product available now for immediate purchase.
