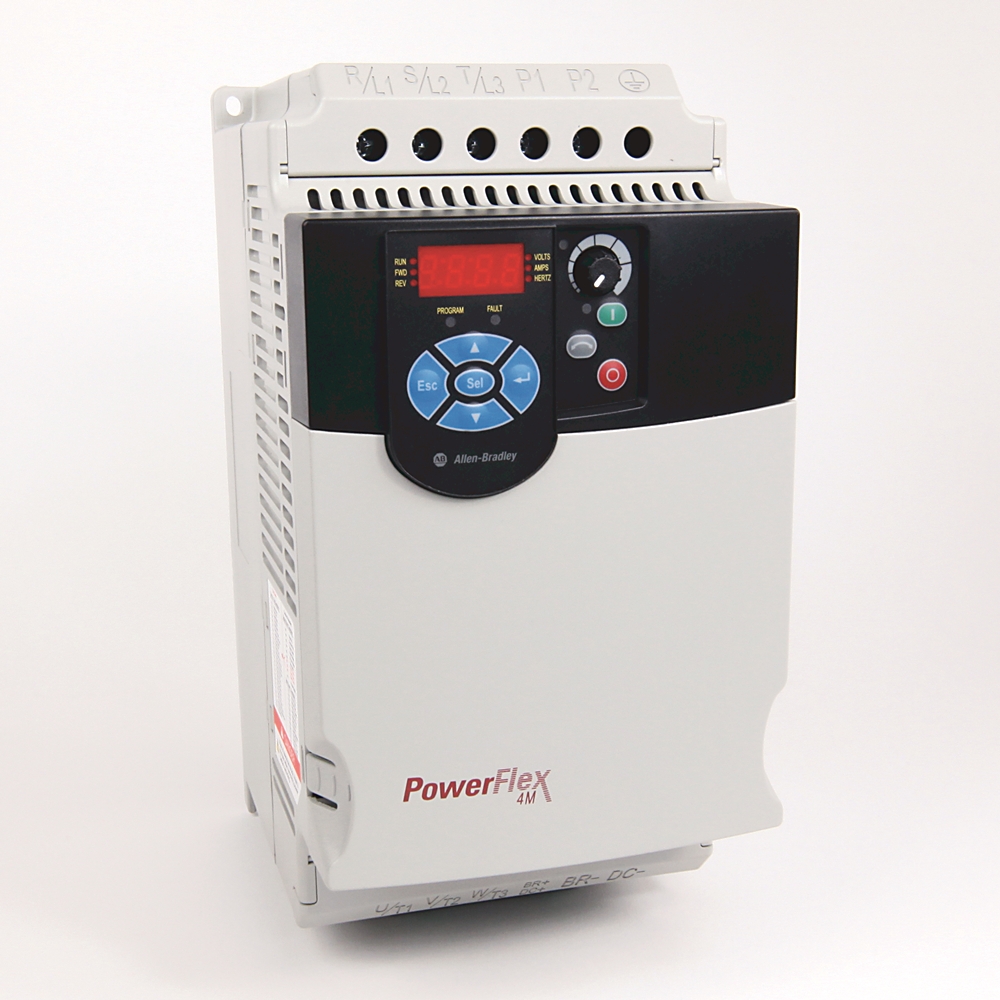

PowerFlex4M AC Drive 11 kW | 480VAC 3-Phase | 24 Amps Current | IP20 Enclosure by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22F-D024N104
$1,800.40 List price: $1,996.50
+ −
30 Days Return Delivery Options
PowerFlex4M AC Drive with 11 kW output and 480VAC, 3-phase operation—ideal for industrial motor control and automation. Built for efficiency, it features a 24 Amps current rating and an IP20 enclosure for versatile applications.

Product Name/Title: PowerFlex4M AC Drive 11 kW | 480VAC 3-Phase | 24 Amps Current | IP20 Enclosure by Allen-Bradley

Brand: Allen-Bradley

SKU: 22F-D024N104

Alternatively Known As: PowerFlex4M VFD, Allen-Bradley Variable Frequency Drive, 11 kW AC Drive

Technical Specifications
  • Power: 11 kW (15 HP)
  • Voltage: 480VAC, 3-phase
  • Current: 24 Amps
  • Frame Size: C
  • Enclosure: IP20 (Open)
  • Display: LED
  • Control Interface: Fixed Digital Keypad
  • Communication: RS485
  • Filter: No CE Compliant Filter
  • Dimensions (H x L x W): 250mm x 200mm x 150mm
  • Weight: 10 kg
Key Features
  • PowerFlex4M AC Drive with 11 kW power output
  • Operates at 480VAC, 3-phase power supply
  • 24 Amps current rating
  • Frame Size C with IP20 (Open) enclosure
  • LED Display and Fixed Digital Keypad for easy operation
  • RS485 communication interface
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal drive performance.
Applications
  • Industrial motor control
  • Manufacturing automation
  • HVAC systems
  • Pumps and fans
  • Conveyor systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Improves energy efficiency by optimizing motor speed and reducing power consumption
  • Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information

1 year warranty against manufacturing defects.

Available Now

This product available now for immediate purchase.
