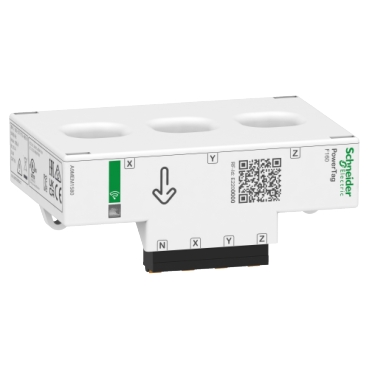

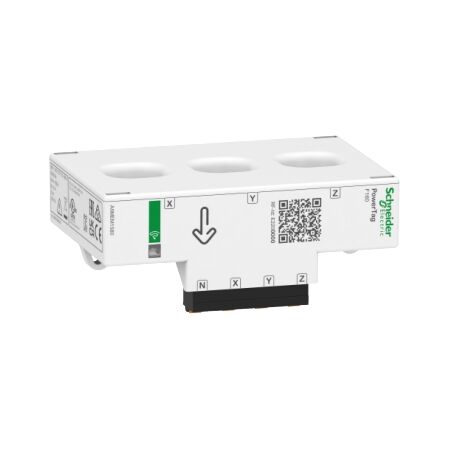

POWERTAG 3PN MAX 160A Energy Sensor | Wireless Monitoring | Compact Design | @Pack of 1 | by Clipsal
The POWERTAG 3PN MAX 160A Energy Sensor is a wireless energy monitoring solution designed for 3-phase networks. With real-time tracking of energy consumption, voltage, and current, this compact sensor integrates seamlessly into distribution boards. Ideal for commercial and industrial applications, it supports proactive maintenance and energy management, ensuring compliance with efficiency initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: POWERTAG 3PN MAX 160A Energy Sensor | Wireless Monitoring | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM1580
Alternatively Known As: PowerTag Energy Sensor, Schneider PowerTag 3 Phase Sensor, SCHA9MEM1580, Clipsal Energy Meter, Wireless Energy Sensor
Technical Specifications
- Rated current: Up to 160A (3-phase neutral)
- Voltage range: 220-415V AC
- Frequency: 50/60Hz
- Wireless communication: 2.4 GHz Zigbee
- Measurement accuracy: Class 1 (IEC 61557-12)
- Operating temperature: -25°C to +70°C
- Mounting: DIN rail
- Power supply: Self-powered from measured circuit
- Dimensions (H x L x W): 90mm x 60mm x 54mm
- Weight: 0.5 kg
Key Features
- Wireless energy sensor for 3-phase networks up to 160A
- Real-time monitoring of energy consumption, voltage, current, and power
- Compact design for easy integration into distribution boards
- Compatible with Schneider Electric EcoStruxure platforms
- Supports alarms for overload, phase loss, and abnormal consumption
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Energy management systems
- Building automation
- Sub-metering for load monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise energy monitoring to optimize power usage and reduce waste
- Supports proactive maintenance, reducing unnecessary downtime and resource use
- Facilitates compliance with energy efficiency initiatives
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal PowerTag 3PN Max 160A Energy Sensor (SCHA9MEM1580) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and management applications.
