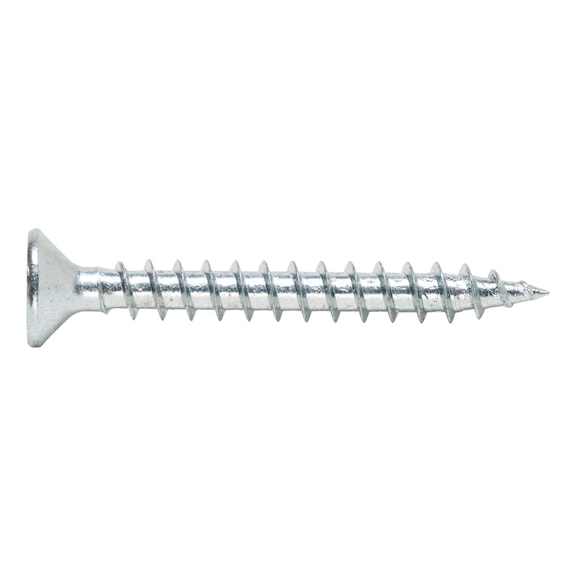

Pozidrive Countersunk Screw | Zinc Plated | Full Thread Design | 34 Degree Tip | by Wurth
The Pozidrive Countersunk Screw is designed for woodworking and carpentry applications, featuring a full thread design for strong holding power and a 34-degree tip for easy penetration. Made from steel with blue galvanised zinc plating, it offers excellent corrosion resistance and is RoHS-compliant, ensuring environmental safety. Ideal for appliance assembly and general fastening in construction and manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pozidrive Countersunk Screw | Zinc Plated | Full Thread Design | 34 Degree Tip | by Wurth
Brand: Wurth
SKU: 198317
Alternatively Known As: Pozidrive countersunk screw, zinc plated wood screw, full thread countersunk screw, blue galvanised screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 17 mm
- Head type: Countersunk head
- Head diameter: 6.0 mm
- Internal drive: Pozidrive Z1
- Thread design: Full thread
- Thread length: 13 mm
- Tip angle: 34 degrees
- Material: Steel
- Surface finish: Zinc plated
- Product weight: 0.555 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6mm x 17mm x 3mm
- Weight: 0.1 kg
Key Features
- Steel material with blue galvanised zinc plating for corrosion resistance
- Full thread design for strong holding power
- Countersunk head with Pozidrive recessed internal drive (Z1)
- 34 degree angle tip for easy penetration
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and safety.
Applications
- Woodworking and carpentry applications
- Appliance assembly and fastening
- General fastening in construction and manufacturing
Standards & Compliance
- Complies with AS/NZS 4785 for fasteners used in timber and wood applications
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Steel Blue Galvanised Full Thread Countersunk Head Screw 3x17mm is available for immediate purchase, ideal for woodworking, appliance assembly, and general fastening applications.
