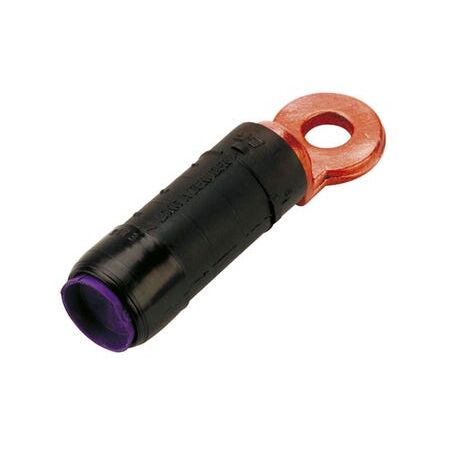

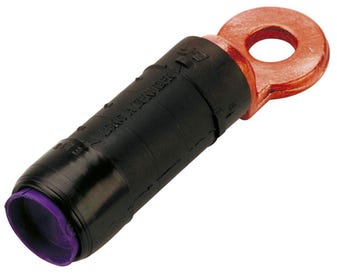

Pre-Insulated Bi-Metal ABC Lug 25mm2 | M10 Stud | Friction Weld & 6kV Dielectric Strength | Colour Coded by Cabac
Cabac Pre-Insulated Bi-Metal ABC Lug 25mm2 with M10 stud is designed for secure and efficient connection of ABC cables to transformers and switchgear, featuring pre-insulation and enhanced electrical contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INS BI-MET ABC LUG 25 MM2 -M10 STUD
Brand: Cabac
SKU: BMABC25-10
Alternatively Known As: Pre-insulated ABC lug, Bi-metal aerial bundled cable lug, ABC cable connector lug, Pre-insulated cable lug 25mm2
Technical Specifications
- Material Barrel: Aluminium
- Material Palm: Copper
- Weld Type: Friction Weld
- End Seal Dielectric Strength: 6kV underwater
- Colour Coding for Cable Size Identification
- Pre-filled with Jointing Compound
- Compatible with HT50 and any 13 tonne hydraulic crimping tools
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Pre-insulated design eliminates need for additional insulation or heatshrink
- Stripping lengths, die size, crimp number and sequence moulded on lug insulation
- Colour coded lugs for easy identification of cable sizes
- End seal provides 6kV underwater dielectric strength
- Pre-filled with jointing compound for improved electrical contact
- Friction weld type construction with aluminium barrel and copper palm
Professional Installation Requirements
- Installation requires hydraulic crimping tools and should be performed by qualified electrical professionals to ensure safety and compliance.
Applications
- Connecting Aerial Bundled Cables (ABC) to transformers
- Connecting ABC cables to switchgear on pole tops
- Electrical power connectivity in overhead power distribution
Standards & Compliance
- Complies with AS4325 for electrical connectors
Environmental Benefits
- Pre-insulated design reduces use of additional insulating materials, minimizing waste
- Durable materials and construction extend product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Pre-Insulated Bi-Metal ABC Lug 25mm2 - M10 Stud is available for immediate purchase, ideal for electrical power connectivity in overhead ABC cable installations.
