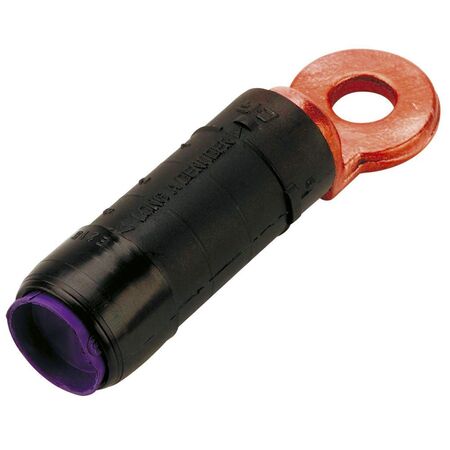

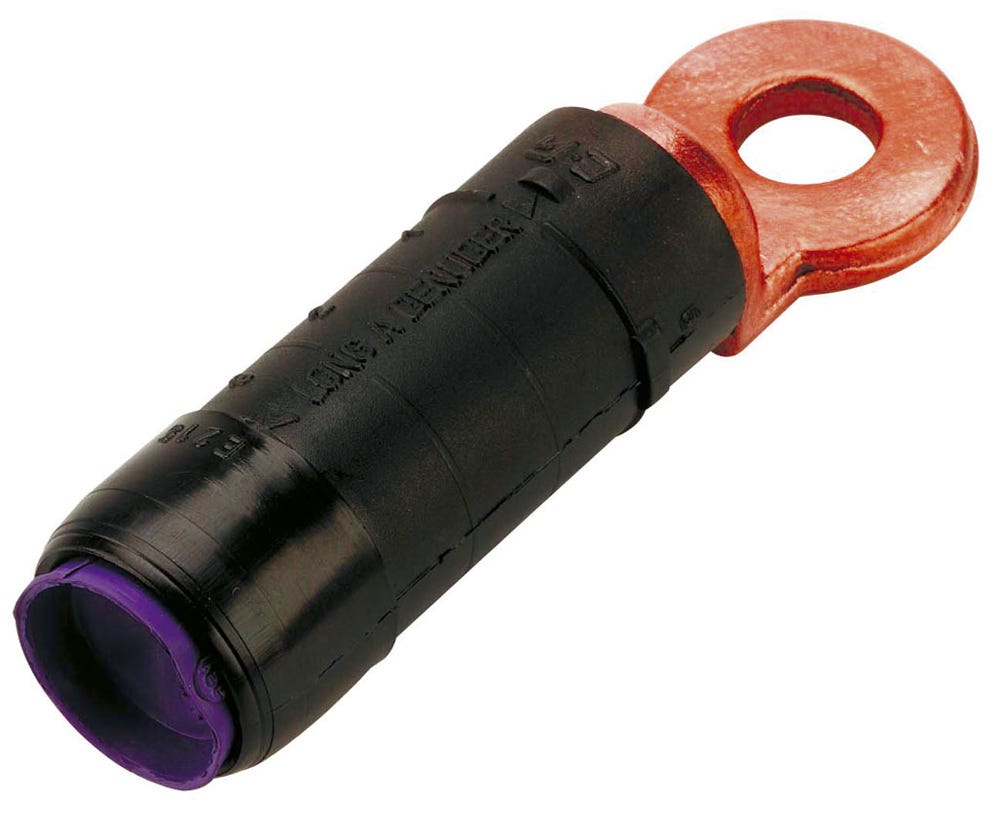

Pre-Insulated Bimetal ABC Lugs 150mm² | Aluminium & Copper | 6kV Dielectric Strength | @Each of 1 | by Cabac
Pre-insulated bimetal ABC lugs 150mm² are designed for efficient electrical connectivity in overhead power distribution. Featuring an aluminium barrel and copper palm, these lugs eliminate the need for additional insulation while providing a robust 6kV underwater dielectric strength. Ideal for connecting aerial bundled cables to transformers and switchgear, they ensure improved electrical contact and system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pre-Insulated Bimetal ABC Lugs 150mm² | Aluminium & Copper | 6kV Dielectric Strength | @Each of 1 | by Cabac
Brand: Cabac
SKU: BMABC150
Alternatively Known As: Pre-insulated ABC lug, Bi-metal ABC cable lug, ABC cable connector lug, Pre-insulated cable lug 150mm²
Technical Specifications
- Material Barrel: Aluminium
- Palm Material: Copper
- Weld Type: Friction Weld
- End Seal Dielectric Strength: 6kV underwater
- Pre-filled with jointing compound for improved electrical contact
- Conformant Standards: AS4325, BS4579, IEC
- Dimensions (H x L x W): 20mm x 150mm x 40mm
- Weight: 0.1 kg
Key Features
- Pre-insulated design eliminates need for additional insulation or heatshrink
- Colour coded for easy identification of cable sizes
- Stripping lengths, die size, crimp number and sequence moulded on lug insulation
- Pre-filled with jointing compound for improved electrical contact
- End seal provides 6kV underwater dielectric strength
Professional Installation Requirements
- Installation requires crimping with a hydraulic tool such as the HT50 crimp tool or any 13 tonne crimping tool. Professional installation by a qualified electrician or technician is recommended.
Applications
- Connecting Aerial Bundled Cables (ABC) to transformers
- Connecting ABC cables to switchgear on pole tops
- Electrical power connectivity in overhead power distribution
Standards & Compliance
- Complies with AS4325 – Electrical connectors for overhead power lines
Environmental Benefits
- Pre-insulated design reduces need for additional insulating materials, minimizing waste
- Improved electrical contact reduces energy loss and enhances system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Pre-Insulated Bi-Metal ABC Lug 150mm² is available for immediate purchase, ideal for overhead power distribution and ABC cable connections.
