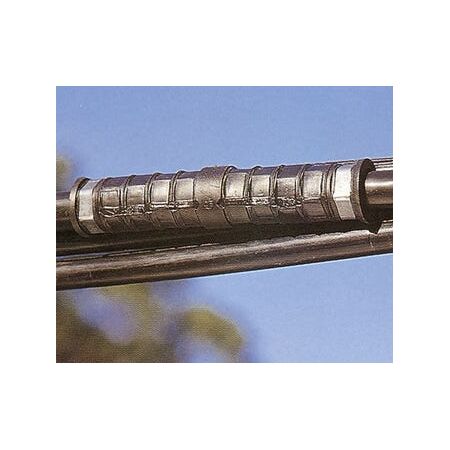

Pre-Insulated Compression Sleeve 150mm | 1050A Aluminium | Thermoplastic Insulation | ABC Cable Connector by Cabac
Cabac Pre-Insulated Compression Sleeve 150mm is designed for full tension joining of ABC cables, featuring a 1050A aluminium tube with internal contact grease and thermoplastic polymer insulation for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pre-Ins Compression Slv 150mm
Brand: Cabac
SKU: MJPT150
Alternatively Known As: Pre-insulated ABC cable sleeve, Compression sleeve for ABC cables, Tension sleeve for aerial bundled conductor, ABC cable connector sleeve
Technical Specifications
- Conductive material: Aluminium 99.6% pure
- Insulating material: Thermoplastic polymer
- Operating temperature range: -55°C to 100°C
- Internal contact grease for improved electrical contact
- Conformant standards: HN 33 S 66 August 1985 EDF, HN 33 E 60 August 1988 EDF
- Accepted by Electricity Services Victoria, Energy Australia, and other recognized authorities
- Dimensions (H x L x W): 40mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Pre-insulated tension sleeve designed for full tension joining of ABC cables
- 1050A aluminium tube internally coated with contact grease and a stop for correct conductor positioning
- Strong thermoplastic polymer insulation sheath with additional insulation rings colored for conductor size identification
- Markings for crimping order, insulation strip length, die size, fitting reference code, and color code for size selection
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals following crimping instructions and safety standards.
Applications
- Full tension joining of Aerial Bundled Conductor (ABC) cables in overhead power lines
- Electrical power connectivity for utility and industrial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Thermoplastic polymer insulation is resistant to environmental degradation, enhancing longevity
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The Cabac Pre-Insulated Compression Sleeve 150mm is available for immediate purchase, ideal for overhead ABC cable jointing in electrical power connectivity applications.
