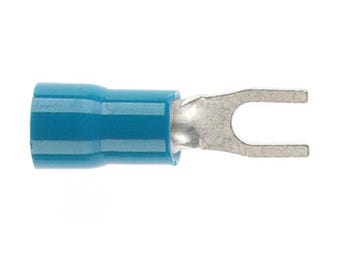

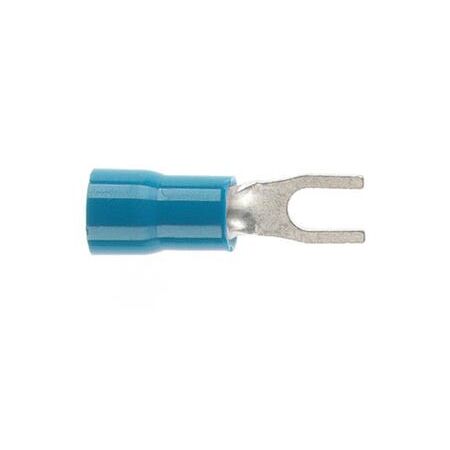

Pre-Insulated Forked Spade Terminal 1.0-2.6mm | 3mm Stud | Blue by Cabac
Pre-insulated forked spade terminal with 1.0-2.6mm cable capacity and 3mm stud—ideal for electrical, automotive, and industrial applications. Built for secure wire termination, with copper body and nylon insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED FORKED SPADE TERMINAL (1.0-2.6MM CABLE) BLUE 3MM STUD
Brand: Cabac
SKU: FS2-3
Alternatively Known As: Pre-Insulated Forked Spade Connector, Blue Forked Terminal, 3mm Stud Spade Terminal, Electrical Wire Fork Terminal
Technical Specifications
- Cable Size: 1.0-2.6mm
- Stud Size: 3mm
- Material: Copper terminal body with nylon insulation
- Temperature Rating: Up to 105°C
- Voltage Rating: 600V
- Halogen-Free: Yes
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 30mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- Single grip design with funnel entry for fast and efficient wire termination
- Copper terminal body providing excellent electrical conductivity
- Nylon insulation, both copper and nylon components are completely halogen-free
- Operating temperature up to 105°C
- Operating voltage of 600V
- RoHS and REACH compliant
Professional Installation Requirements
- Must be crimped onto the conductor using a quality crimper designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Electrical Wiring Systems: Connecting wires in electrical panels, control systems, and distribution boards
- Automotive Applications: Wiring connections in vehicles and transportation systems
- Industrial Equipment: Terminating wires in industrial machinery and equipment
- General Electrical Installations: Secure and efficient wire termination in various electrical setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- RoHS and REACH compliance ensures reduced hazardous substances and chemical safety
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Pre-Insulated Forked Spade Terminal is available now for immediate purchase. Ideal for electrical wiring, automotive, and industrial applications requiring secure wire termination.
