Trade Discount 17%

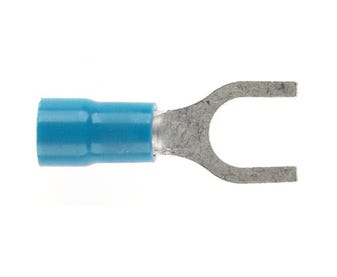

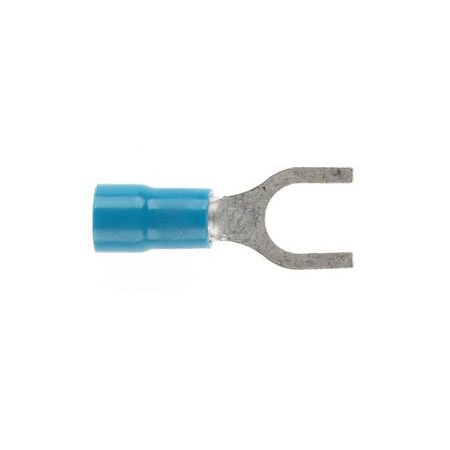

Pre-Insulated Forked Spade Terminal | 1.0-2.6mm Cable | Blue 6mm Stud | Double Grip by Cabac
Pre-insulated forked spade terminal with 1.0-2.6mm cable capacity and blue 6mm stud—ideal for high vibration applications. Built for automotive, aerospace, and marine use, with double grip design for enhanced stability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED FORKED SPADE TERMINAL (1.0-2.6MM CABLE) BLUE 6MM STUD DOUBLE GRIP
Brand: Cabac
SKU: FS2-6DG
Alternatively Known As: Pre-Insulated Forked Spade Connector, Blue Forked Terminal, Double Grip Spade Terminal, Vibration Resistant Spade Terminal
Technical Specifications
- Suitable for cable sizes 1.0-2.6mm².
- 6mm stud size.
- Double grip design for enhanced vibration resistance.
- Copper terminal body with PVC insulation.
- Operating temperature up to 75°C.
- Operating voltage up to 600V.
- Manufactured to AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
- Dimensions (H x L x W): 40mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
Professional Installation Requirements
- Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure secure and long-lasting connections.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems where high vibration levels are prevalent.
- Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments where vibrations from engines and machinery are common.
- Power Distribution Systems: Reliable for use in power distribution systems where stability and durability are essential.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty coverage subject to manufacturer terms; typically covers manufacturing defects.
Available Now
The Cabac Pre-Insulated Forked Spade Terminal Blue 6mm Stud Double Grip is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
