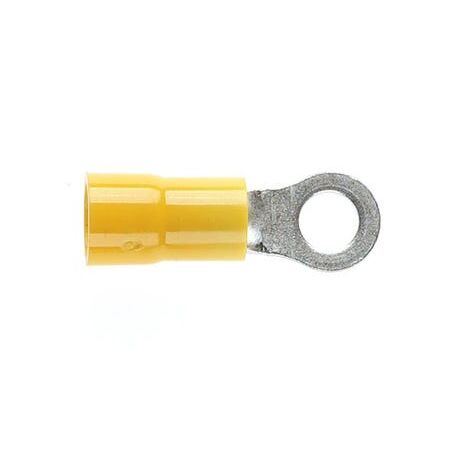

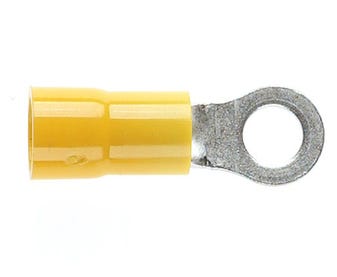

Pre-Insulated Ring Terminal for 0.2-0.5mm Cable | Double Grip | PVC Insulated | 5mm Stud by Cabac

BRAND: CABAC
SKU: RT0.3-5DG
$60.30 List price: $73.00
+ −
30 Days Return Delivery Options
The Cabac Yellow Pre-Insulated Ring Terminal is designed for fine conductor cables from 0.2 to 0.5mm, featuring double grip crimp barrels and high-quality PVC insulation, ensuring long-term electrical integrity and compliance with AS 3169 and AS 4437 standards.

Product Name/Title: PRE-INSULATED RING TERMINAL (0.2-0.5MM CABLE) YELLOW 5MM STUD DOUBLE GRIP

Brand: Cabac

SKU: RT0.3-5DG

Alternatively Known As: Pre-insulated ring terminal, yellow insulated terminal, double grip ring terminal, 5mm stud terminal, fine conductor terminal

Technical Specifications
  • Conductor Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength (Quick Connect Range): 580 MPa
  • Ductile Rating (Quick Connect Range): 6% min
  • Final Metal State (Quick Connect Range): Annealed
  • Working Temperature: Pre-Insulated -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Conductor Material (Except Quick Connect Range): Copper 99.9% Pure
  • Tensile Strength (Except Quick Connect Range): 200 MPa
  • Ductile Rating (Except Quick Connect Range): 35% min
  • Final Metal State (Except Quick Connect Range): Fully Annealed
  • Oxygen Content: 50ppm max
  • Total Conductivity: 99.5% IACS
  • Total Resistivity: 1.738 micro-ohm cm
  • Electroplating Material: Tin
  • Tin Content: 99.9%
  • Plating Thickness: 2.5 microns
  • Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
  • Dimensions (H x L x W): 5mm x 20mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Double grip with separate crimp barrels for conductor and insulation
  • High quality product meeting international standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Voltage rating of 300V
  • PVC insulated
  • Conforms to AS 3169 and AS 4437 standards
Professional Installation Requirements
  • Should be crimped using the KTC05 tool by a qualified electrician or technician to ensure proper connection and safety.
Applications
  • Electrical wiring and cable terminations in residential, commercial, and industrial settings
  • Suitable for fine conductor cables in the 0.2 to 0.5mm range
  • Used in power connectivity and terminal connections requiring secure crimps
Standards & Compliance
  • AS/NZS 3169 – Electrical connectors
  • AS/NZS 4437 – Electrical installations – Cable management
Environmental Benefits
  • Durable materials reduce the need for frequent replacements
  • Ensures secure electrical connections reducing energy loss
  • PVC insulation is recyclable under appropriate waste management
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Yellow Pre-Insulated Ring Terminal is available for immediate purchase, ideal for electrical and power connectivity applications requiring reliable cable terminations.
