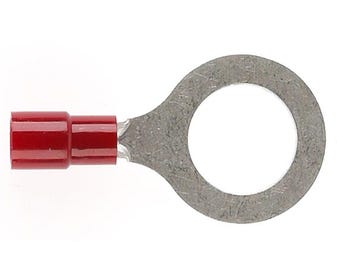

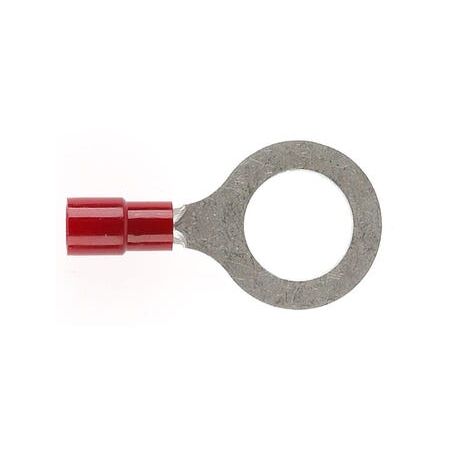

Pre-Insulated Ring Terminal 0.5-1.6mm² | 10mm Stud | Double Grip | Red by Cabac
Pre-insulated ring terminal with 0.5-1.6mm² cable capacity and 10mm stud—ideal for high vibration applications. Built for automotive, aerospace, and marine use, with double grip design for enhanced stability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (0.5-1.6MM CABLE) RED 10MM STUD DOUBLE GRIP
Brand: Cabac
SKU: RT1.25-10DG
Alternatively Known As: Double Grip Ring Terminal, Pre-Insulated Electrical Terminal, Vibration Resistant Ring Terminal, Copper Sleeve Terminal
Technical Specifications
- Cable Size: 0.5-1.6mm²
- Stud Size: 10mm
- Material: Copper terminal body with PVC insulation
- Design: Double grip with additional copper sleeve for vibration resistance
- Operating Temperature: Up to 75°C
- Operating Voltage: 600V
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 5mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
- Manufactured in accordance with AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
Professional Installation Requirements
- Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
- Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Suitable for marine environments with vibrations from engines and machinery.
- Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Pre-Insulated Ring Terminal is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial power distribution systems.
