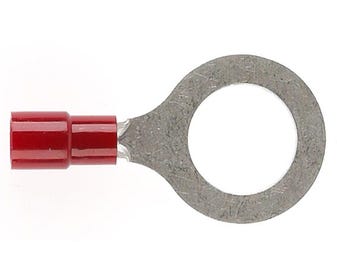

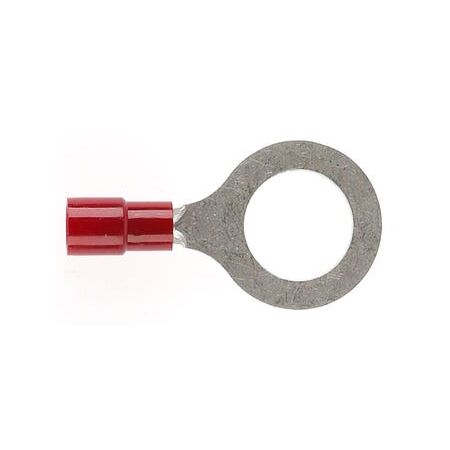

Pre-Insulated Ring Terminal | 0.5-1.6mm Cable | Red 12mm Stud | Double Grip Design by Cabac

BRAND: CABAC
SKU: RT1.25-12DG
$9.00 List price: $10.90
+ −
30 Days Return Delivery Options
The Cabac Pre-Insulated Ring Terminal with a red 12mm stud and double grip design offers superior vibration resistance and improved wire insulation, ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.

Product Name/Title: PRE-INSULATED RING TERMINAL (0.5-1.6MM CABLE) RED 12MM STUD DOUBLE GRIP

Brand: Cabac

SKU: RT1.25-12DG

Alternatively Known As: Double Grip Ring Terminal, Pre-Insulated Ring Terminal, Vibration Resistant Terminal, Copper Sleeve Terminal

Technical Specifications
  • Double grip design for enhanced stability in high vibration environments.
  • Additional copper sleeve for improved vibration resistance and wire insulation.
  • Copper terminal body with PVC insulation.
  • Operating temperature up to 75°C.
  • Operating voltage: 600V.
  • Manufactured to AS 3169 and AS 4437 standards.
  • RoHS and REACH compliant.
  • Dimensions (H x L x W): 5mm x 40mm x 20mm
  • Weight: 0.01 kg
Key Features
  • Double grip design engineered to withstand high vibration conditions.
  • Additional copper sleeve enhances vibration resistance and improves wire insulation.
  • Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
  • Operates within a temperature range up to 75°C.
  • Operating voltage of 600V.
  • Manufactured in strict accordance with international standards including AS 3169 and AS 4437.
  • RoHS and REACH compliant.
Professional Installation Requirements
  • Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure a secure and durable connection.
Applications
  • Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
  • Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
  • Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
  • Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, restricting hazardous substances to reduce environmental impact.
  • REACH compliant, ensuring chemical safety and reduced environmental harm.
Warranty Information

Warranty coverage subject to manufacturer terms; typically covers manufacturing defects.

Available Now

The Cabac Pre-Insulated Ring Terminal Red 12mm Stud Double Grip is available for immediate purchase, ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial sectors.
