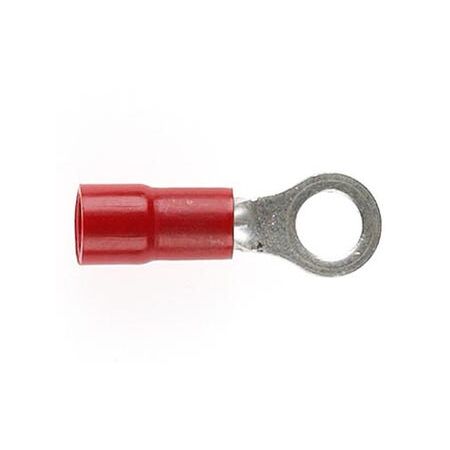

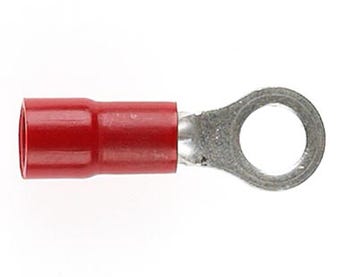

Pre-Insulated Ring Terminal 0.5-1.6mm | Red 4mm Stud | Copper & Nylon by Cabac
Pre-insulated ring terminal with 0.5-1.6mm cable capacity and red 4mm stud—ideal for electrical and automotive applications. Built for secure connections, with copper body and nylon insulation for excellent conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (0.5-1.6MM CABLE) RED 4MM STUD
Brand: Cabac
SKU: RT1.25-4
Alternatively Known As: Pre-Insulated Ring Terminal, Red Ring Terminal 4mm Stud, Electrical Wire Terminal Connector, Nylon Insulated Ring Terminal
Technical Specifications
- Cable Size: 0.5-1.6mm
- Stud Size: 4mm
- Material: Copper terminal body with nylon insulation
- Temperature Rating: Up to 105°C
- Voltage Rating: 600V
- Halogen-free components
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Single grip design with funnel entry for fast and efficient wire termination
- Copper terminal body providing excellent electrical conductivity
- Nylon insulation, both copper and nylon components are completely halogen-free
- Operates within a temperature range up to 105°C
- Operating voltage of 600V
- Manufactured in strict accordance with AS 3169 and AS 4437 standards
- RoHS and REACH compliant
Professional Installation Requirements
- Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure secure and long-lasting connections.
Applications
- Electrical Wiring Systems: Connecting wires in electrical panels, control systems, and distribution boards
- Automotive Applications: Wiring connections in vehicles and transportation systems
- Industrial Equipment: Wire termination in industrial machinery and equipment
- General Electrical Installations: Secure and efficient wire termination in various electrical setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- RoHS and REACH compliance ensures restriction of hazardous substances and chemical safety
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Pre-Insulated Ring Terminal (0.5-1.6mm Cable) Red 4mm Stud is available for immediate purchase. Ideal for electrical wiring, automotive, and industrial applications.
