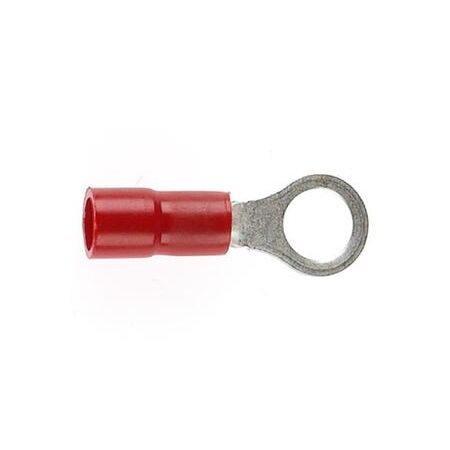

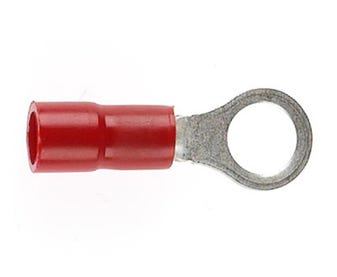

Pre-Insulated Ring Terminal 0.5-1.6mm Cable | Red 5mm Stud | Copper & Nylon by Cabac
Pre-insulated ring terminal with 0.5-1.6mm cable capacity and red 5mm stud—ideal for electrical, automotive, and industrial applications. Built for secure connections, with copper body and nylon insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (0.5-1.6MM CABLE) RED 5MM STUD
Brand: Cabac
SKU: RT1.25-5
Alternatively Known As: Pre-Insulated Ring Terminal, Red Ring Terminal 5mm Stud, Electrical Wire Terminal Connector, Nylon Insulated Ring Terminal
Technical Specifications
- Cable Size: 0.5-1.6mm
- Stud Size: 5mm
- Material: Copper terminal body with nylon insulation
- Temperature Rating: Up to 105°C
- Voltage Rating: 600V
- Halogen-free copper and nylon components
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Single grip design with funnel entry for fast and efficient wire termination
- Copper terminal body providing excellent electrical conductivity
- Nylon insulation, both copper and nylon components are completely halogen-free
- Operates up to 105°C temperature
- Operating voltage of 600V
- Manufactured in accordance with AS 3169 and AS 4437 standards
- RoHS and REACH compliant
Professional Installation Requirements
- Must be crimped onto the conductor using a quality crimper designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Electrical Wiring Systems: Connecting wires in electrical panels, control systems, and distribution boards
- Automotive Applications: Wiring connections in vehicles and transportation systems
- Industrial Equipment: Wire termination in industrial machinery and equipment
- General Electrical Installations: Secure and efficient wire termination in various electrical setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, reducing hazardous substances
- REACH compliant, ensuring chemical safety
- Halogen-free materials reduce environmental impact
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Pre-Insulated Ring Terminal (0.5-1.6mm Cable) Red 5mm Stud is available now for immediate purchase. Ideal for electrical wiring, automotive, and industrial applications.
