Trade Discount 17%

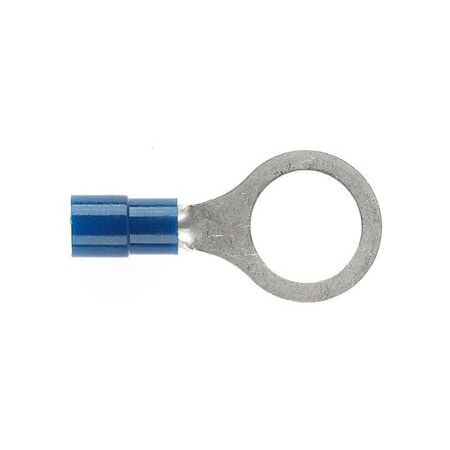

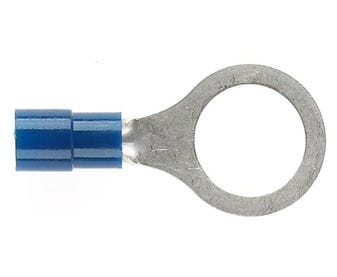

Pre-Insulated Ring Terminal 1.0-2.6mm | Blue 10mm Stud | Double Grip by Cabac
Pre-insulated ring terminal with 1.0-2.6mm cable compatibility and blue 10mm stud—ideal for high vibration applications. Built for automotive, aerospace, and marine use, with double grip design and copper sleeve for enhanced stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (1.0-2.6MM CABLE) BLUE 10MM STUD DOUBLE GRIP
Brand: Cabac
SKU: RT2-10DG
Alternatively Known As: Double Grip Ring Terminal, Pre-Insulated Ring Terminal, Vibration Resistant Ring Terminal, Blue Ring Terminal 10mm Stud
Technical Specifications
- Cable Size Compatibility: 1.0-2.6mm
- Stud Size: 10mm
- Material: Copper terminal body with PVC insulation
- Design: Double grip with additional copper sleeve for vibration resistance
- Operating Temperature: Up to 75°C
- Operating Voltage: 600V
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 5mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range of up to 75°C.
- Operating voltage of 600V.
- Manufactured in strict accordance with international standards including AS 3169 and AS 4437.
- RoHS and REACH compliant.
Professional Installation Requirements
- Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems where high vibration levels are prevalent.
- Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments where vibrations from engines and machinery are common.
- Power Distribution Systems: Reliable for use in power distribution systems where stability and durability are essential.
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and reduced environmental harm.
Warranty Information
Warranty coverage subject to manufacturer terms; typically includes defects in materials and workmanship.
Available Now
The Cabac Pre-Insulated Ring Terminal Blue 10mm Stud Double Grip is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
