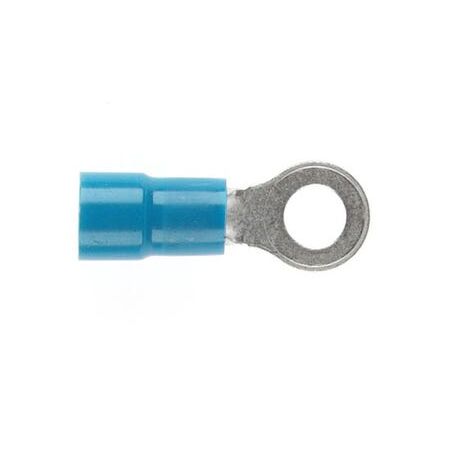

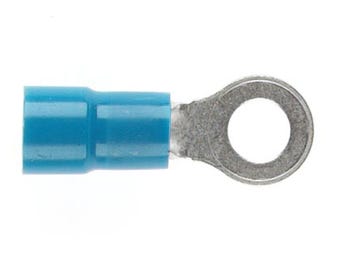

Pre-Insulated Ring Terminal 1.0-2.6mm | Blue 4mm Stud | Double Grip by Cabac
Pre-insulated ring terminal with 1.0-2.6mm cable compatibility and blue 4mm stud—ideal for high vibration applications. Built for automotive and industrial use, with double grip design and copper sleeve for enhanced stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (1.0-2.6MM CABLE) BLUE 4MM STUD DOUBLE GRIP
Brand: Cabac
SKU: RT2-4DG
Alternatively Known As: Pre-Insulated Ring Terminal, Double Grip Ring Terminal, Blue Ring Terminal 4mm Stud, Vibration Resistant Terminal, Copper Sleeve Terminal
Technical Specifications
- Cable Size Compatibility: 1.0-2.6mm
- Stud Size: 4mm
- Material: Copper terminal body with PVC insulation
- Design: Double grip with additional copper sleeve for vibration resistance
- Operating Temperature: Up to 75°C
- Operating Voltage: 600V
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Double grip design specifically engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Constructed with a copper terminal body and PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range of up to 75°C.
- Operating voltage of 600V.
Professional Installation Requirements
- Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems where high vibration levels are prevalent.
- Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments where vibrations from engines and machinery are common.
- Power Distribution Systems: Reliable for use in power distribution systems where stability and durability are essential.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring restriction of hazardous substances.
- REACH compliant, adhering to chemical safety regulations.
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Pre-Insulated Ring Terminal Blue 4mm Stud Double Grip is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
