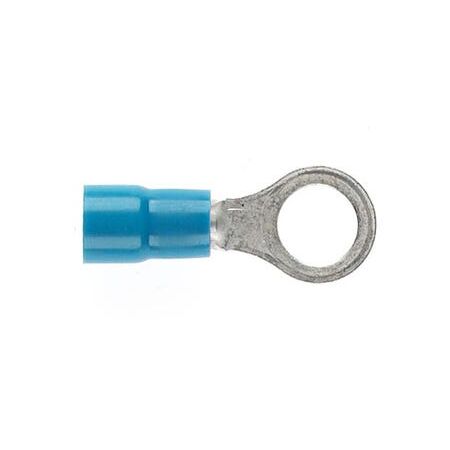

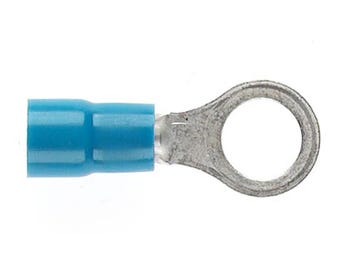

Pre-Insulated Ring Terminal 1.0-2.6mm | Blue 6mm Stud | Double Grip by Cabac
Pre-insulated ring terminal with 1.0-2.6mm cable compatibility and blue 6mm stud—ideal for high vibration applications. Built for automotive and industrial use, with double grip design and enhanced vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (1.0-2.6MM CABLE) BLUE 6MM STUD DOUBLE GRIP
Brand: Cabac
SKU: RT2-6DG
Alternatively Known As: Pre-Insulated Ring Terminal, Double Grip Ring Terminal, Vibration Resistant Ring Terminal, Blue Insulated Ring Terminal 6mm Stud
Technical Specifications
- Cable Size Compatibility: 1.0-2.6mm
- Stud Size: 6mm
- Material: Copper terminal body with PVC insulation
- Design: Double grip with additional copper sleeve for enhanced vibration resistance
- Operating Temperature: Up to 75°C
- Operating Voltage: 600V
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 5mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
- Manufactured in strict accordance with AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
Professional Installation Requirements
- Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
- Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
- Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Pre-Insulated Ring Terminal Blue 6mm Stud Double Grip is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
