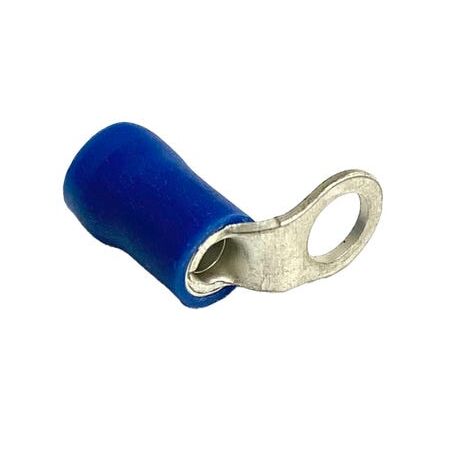

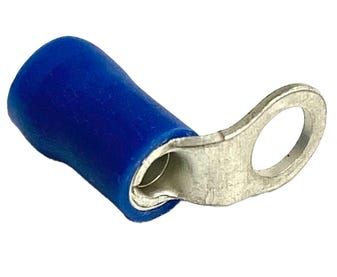

Pre-Insulated Ring Terminal | 1.0-2.6mm Cable | 90 Degree Double Grip | Blue by Cabac
The Cabac Pre-Insulated Ring Terminal with a 90 Degree Blue 4mm Stud Double Grip is designed for high vibration applications, offering enhanced stability, durability, and superior vibration resistance with an additional copper sleeve and PVC insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (1.0-2.6MM CABLE) BLUE 4MM STUD 90 DEGREE DOUBLE GRIP
Brand: Cabac
SKU: RT2-4DG-90
Alternatively Known As: Pre-Insulated Ring Terminal, Double Grip Ring Terminal, 90 Degree Ring Terminal, Blue Ring Terminal 4mm Stud
Technical Specifications
- Double grip design for enhanced vibration resistance.
- Additional copper sleeve for improved wire insulation.
- Copper terminal body with PVC insulation.
- Operating temperature up to 75°C.
- Operating voltage: 600V.
- Manufactured to AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.01 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
Professional Installation Requirements
- Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
- Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
- Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Pre-Insulated Ring Terminal 90 Degree Blue 4mm Stud Double Grip is available for immediate purchase, ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
