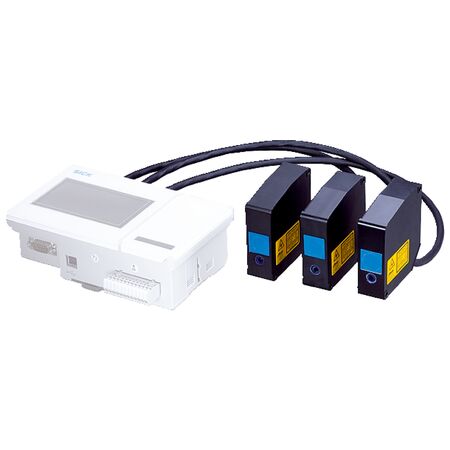

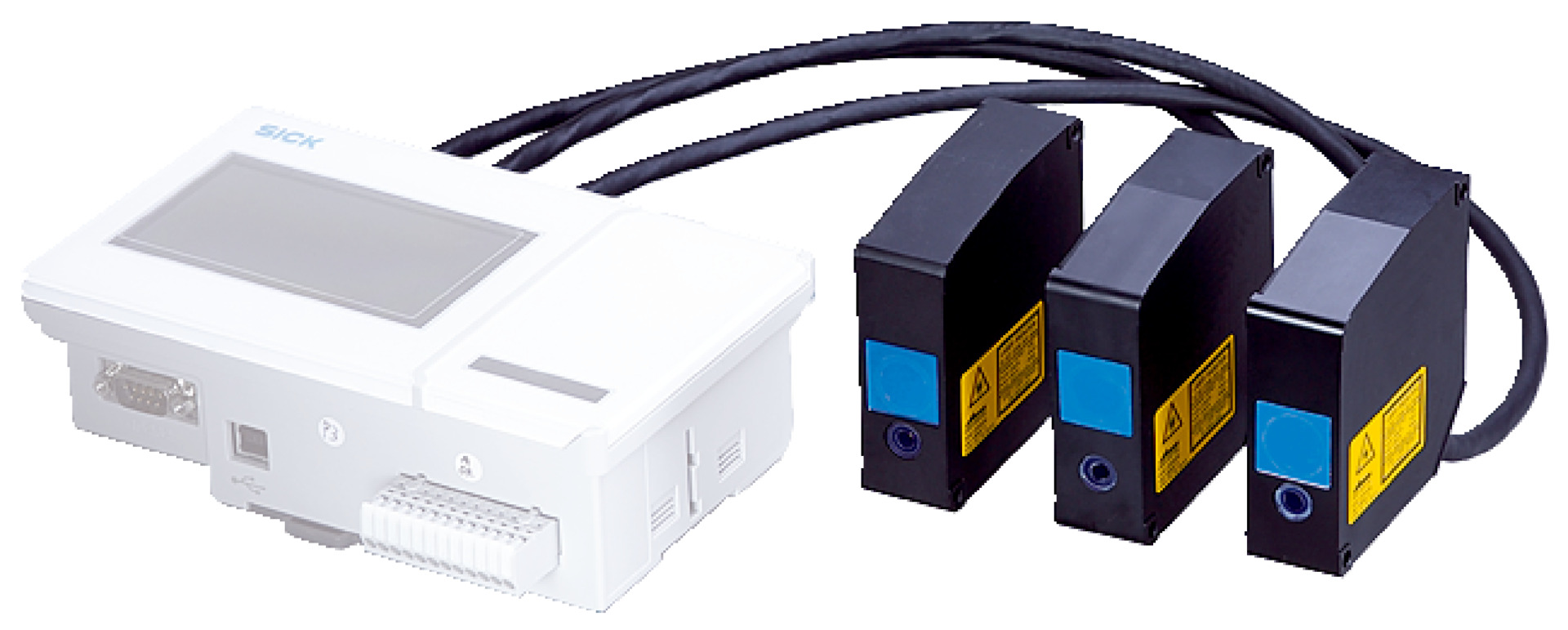

Precision Laser Sensor Head OD5-25W01 | 24 mm to 26 mm Measuring Range | 0.02 µm Repeatability | IP67 Rated | by SICK
The Precision Laser Sensor Head OD5-25W01 is designed for high-accuracy thickness measurement of transparent materials, featuring a measuring range of 24 mm to 26 mm and an impressive repeatability of 0.02 µm. With a robust IP67 rated enclosure and a visible red laser light source, this sensor is perfect for industrial precision measurement tasks, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 24 mm to 26 mm
- Repeatability: 0.02 µm
- Linearity: ±1.6 µm
- Response time: ≥ 0.1 ms
- Output time: ≥ 0.1 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 25 mm: 100 µm x 700 µm
- Thickness measurement range for transparent material: 0.3 mm to 2 mm
- Supply voltage: DC 12 V to 24 V
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Connection: 0.5 m cable with connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 24 mm to 26 mm
- High repeatability of 0.02 µm
- Linearity of ±1.6 µm
- Response and output time ≥ 0.1 ms
- Visible red laser light source, Laser class 1
- Selectable measuring frequency from 0.1 ms to 3.2 ms
- Automatic and manual sensitivity adjustment
- Mutual interference and glass thickness measurement capabilities
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and calibration with evaluation units and compliance with safety standards.
Applications
- Thickness measurement of transparent materials
- Industrial precision measurement tasks
- Use with AOD5-P/N1 or standalone via RS-422 interface
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces material waste
- Durable IP67 rated housing extends product life
- Energy-efficient laser technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD5-25W01 Precision Laser Sensor Head is available for immediate purchase, ideal for industrial precision measurement and quality control applications.
