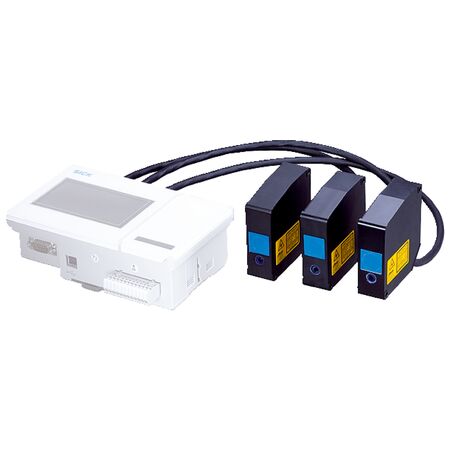

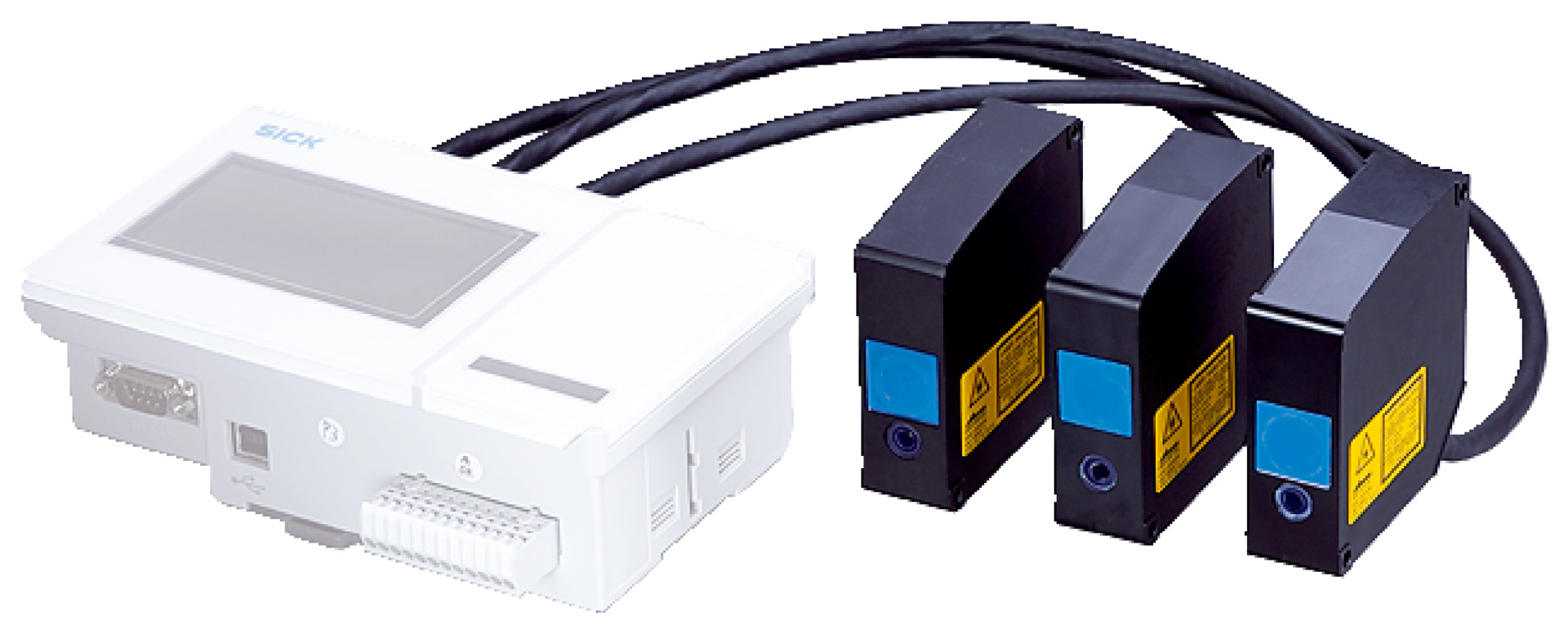

Precision Thickness Sensor OD5-30W05 | 25 mm to 35 mm Range | 0.2 µm Repeatability | IP67 Rated | by SICK
The Precision Thickness Sensor OD5-30W05 is designed for accurate thickness measurement of transparent materials, featuring a measuring range of 25 mm to 35 mm and a high repeatability of 0.2 µm. With its robust IP67 rated enclosure and laser class 2 visible red light source, this sensor is perfect for industrial automation and quality control applications, ensuring precision in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Repeatability: 0.2 µm
- Linearity: Diffuse ±8 µm, Specular ±4 µm
- Response time: ≥ 0.1 ms
- Light source: Laser, visible red light
- Laser class: 2 (IEC 60825-1:2014)
- Typical light spot size at 30 mm: 260 µm x 1,000 µm
- Thickness measurement range for transparent materials: 0.9 mm to 5 mm
- Supply voltage: DC 12 V to 24 V
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 25 mm to 35 mm
- High repeatability of 0.2 µm
- Laser class 2 visible red light source
- Thickness measurement capability for transparent materials from 0.9 mm to 5 mm
- Automatic and manual sensitivity adjustment
- Mean-value setting selectable up to 4,096 times
- Response and output time ≥ 0.1 ms
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Supports RS-422 serial interface with optional RS-232 via external unit
- 3 digital outputs (PNP/NPN) and 3 analog outputs (current/voltage)
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Thickness measurement of transparent materials
- Industrial automation and quality control
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise measurement reducing material waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK OD5-30W05 Precision Sensor Head is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise thickness measurement.
