Premium Inline Exhaust Kit Round Fascia White Ventair

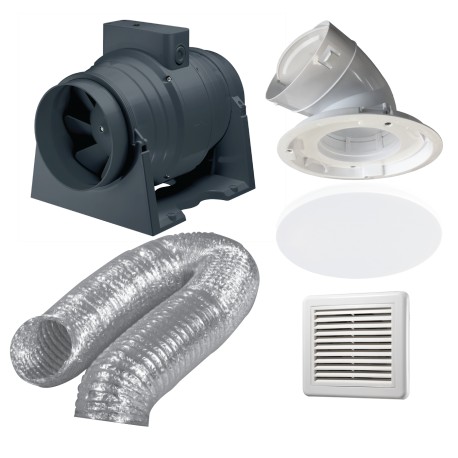

Ventair premium inline exhaust kit with mixflow inline fan, white round fascia, air vent adapter, flexible aluminium duct and fixed exterior grille.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair VIKWHRD, Premium Inline Bathroom Exhaust Kit, 150mm Mixflow Inline Exhaust Fan Kit
Technical Specifications
- Model Number: VIKWHRD
- Motor Type: AC mixflow inline fan
- Motor: Long-life ball bearing motor
- Motor Power: 40W low speed; 50W high speed
- Air Delivery: 438m³/h low speed; 561m³/h high speed
- Noise Level: 39dB(A) low speed; 47dB(A) high speed
- Ducting Size: 150mm inlet and outlet
- Fascia: 268mm diameter white round fascia
- Fascia Cut-out: 238mm diameter
- External Grille: 210mm x 210mm fixed grille
- External Grille Cut-out: 150mm diameter
- Power Input: 220–240V AC, 50Hz
- Ingress Protection: IPX4
- Fan Speeds: 2
- Minimum Installation Depth: 280mm
- Ducting Included: 6m x 150mm flexible aluminium duct
- Electrical Connection: AC plug and lead included
- Kit Contents: Mixflow inline fan, interior air vent adaptor, fixed exterior grille, two adjustable outlet diffusers, duct tape and cable ties
- Dimensions (H x L x W): 247mm x 312mm x 234mm
- Weight: 4.6 kg
Key Features
- Energy-efficient premium inline exhaust system
- Powerful mixflow fan designed for longer duct runs
- White round interior fascia suitable for bathroom and laundry installations
- Long-life ball bearing motor
- Two selectable fan speeds
- Integrated energy-saving backdraft shutter
- Exhausts humid air and condensation to the exterior
- 6m of 150mm flexible aluminium duct included
- Fixed exterior grille and interior air vent adaptor included
- Compatible with Ventair Airbus 200 fascia systems
Professional Installation Requirements
- Electrical installation should be completed by a qualified and licensed electrician in accordance with AS/NZS 3000 and the manufacturer’s instructions. The duct must discharge to the exterior, with suitable building and ventilation provisions observed.
Applications
- Bathroom ventilation
- Ensuite ventilation
- Laundry ventilation
- Residential ducted exhaust ventilation
- Small commercial washroom ventilation
- Removal of steam, humidity and condensation
Standards & Compliance
- AS/NZS 60335.2.80: safety requirements for household and similar electric fans
- AS/NZS 3000: requirements for electrical installation and wiring
Environmental Benefits
- 40W low-speed operation can reduce energy consumption during normal use
- Integrated backdraft shutter helps reduce unwanted air leakage when the fan is not operating
- Long-life ball bearing motor may reduce replacement frequency and product waste
- Aluminium flexible ducting is recyclable through appropriate metal recycling channels
Warranty Information
Five-year warranty for domestic use, subject to Ventair warranty terms, correct installation and proof of purchase. Commercial use is covered by a maximum one-year warranty, with no in-home service.
Available Now
Available through authorised Ventair distributors in Australia.
