Premium Inline Exhaust Kit Round Tri CCT LED White Ventair

BRAND: Ventair
SKU: VIKWHRD-LED
$453.80 List price: $605.00
+ −
30 Days Return Electricians Unlock Trade Access

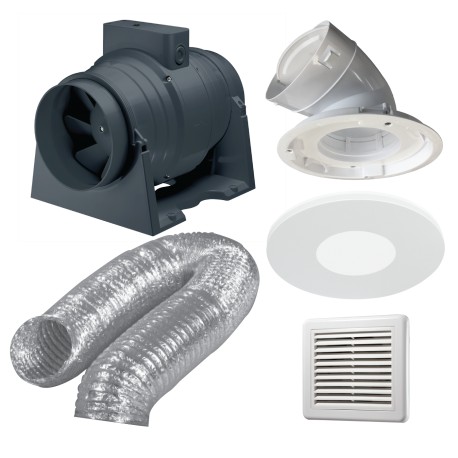

Ventair premium inline exhaust kit with mixflow inline fan, white round fascia with tri-CCT LED, air vent adapter, flexible aluminium duct and exterior grille.

Alternatively Known As: Ventair VIKWHRD-LED Premium Inline Kit, 150 mm Inline Bathroom Exhaust Kit with LED, Round LED Inline Exhaust Fan Kit

Technical Specifications
  • Model Number: VIKWHRD-LED
  • Motor Type: AC ball-bearing motor
  • Motor Power: 40 W low speed; 50 W high speed
  • Air Delivery: 438 m³/h low speed; 561 m³/h high speed
  • Noise Level: 39 dB(A) low speed; 47 dB(A) high speed
  • Duct Size: 150 mm diameter
  • Fascia Size: 268 mm diameter
  • Fascia Cut-out: 238 mm diameter
  • LED Type: 10 W tri-CCT LED
  • LED Output: 1,050 lumens average
  • Colour Temperatures: 3,000 K warm white, 4,200 K natural white, 6,500 K cool white
  • Fan IP Rating: IPX4
  • Power Input: 220–240 V AC, 50 Hz
  • Fan Controls: Two speed settings
  • Minimum Installation Depth: 280 mm
  • Included Ducting: 6 m of 150 mm flexible aluminium duct
  • Included Accessories: Interior air vent adaptor, exterior fixed grille, two adjustable outlet diffusers, duct tape and cable ties
  • Dimensions (H x L x W): 300mm x 620mm x 295mm
  • Weight: 4.6 kg
Key Features
  • High-volume 150 mm mixflow inline exhaust fan
  • Selectable warm white, natural white and cool white LED colour temperatures
  • Long-life ball-bearing motor
  • Integrated energy-saving backdraft shutter
  • Designed to exhaust steam, humidity, odours and condensation outdoors
  • Suitable for ensuites, bathrooms and laundries
  • AC plug and lead included
  • Round white fascia compatible with Ventair Airbus 200 fascia systems
  • Complete kit includes ducting, grille, adaptor and installation accessories
Professional Installation Requirements
  • Installation must be performed by a licensed electrical contractor in accordance with the supplied instructions and AS/NZS 3000:2018. The ducting must discharge to the outdoors, and electrical power must be isolated before installation.
Applications
  • Bathroom and ensuite ventilation
  • Laundry ventilation
  • Residential ceiling-mounted inline exhaust systems
  • Removal of steam, odours and condensation
  • Renovation and new-build ventilation installations
Standards & Compliance
  • AS/NZS 60335.2.80:2025 — applicable safety requirements for household and similar electric fans, including duct fans
  • AS/NZS 3000:2018 — electrical installation and wiring requirements
Environmental Benefits
  • Tri-CCT LED lighting provides efficient illumination with lower energy consumption than equivalent conventional lamps
  • Integrated backdraft shutter can reduce unwanted reverse airflow and associated heat loss
  • Long-life ball-bearing motor may reduce replacement frequency and product waste
  • Aluminium ducting is recyclable at end of service life where suitable recycling facilities are available
Warranty Information

Five-year product warranty when installed in Australia or New Zealand in accordance with Ventair warranty conditions. Commercial use is limited to a maximum one-year warranty. LED panels and drivers are subject to a two-year limited warranty.

Available Now

Available through authorised Ventair distributors in Australia.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
