Premium Inline Exhaust Kit Square Fascia White Ventair

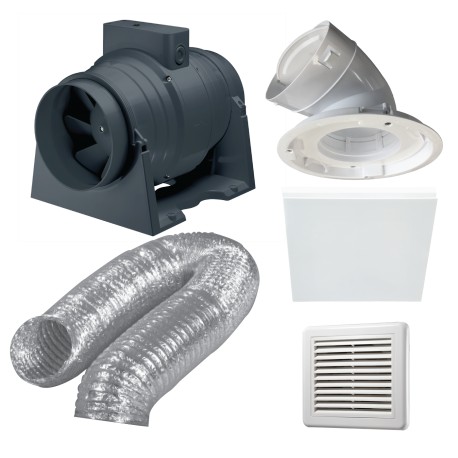

Ventair premium inline exhaust kit with mixflow inline fan, white square fascia, air vent adapter, flexible aluminium duct and fixed exterior grille.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair VIKWHSQ, Premium Inline Bathroom Exhaust Kit, 150 mm Mixflow Inline Exhaust Fan Kit
Technical Specifications
- Model Number: VIKWHSQ
- Motor Type: AC mixflow inline fan with ball bearing motor
- Motor Power: 40 W low speed; 50 W high speed
- Air Delivery: 438 m³/h low speed; 561 m³/h high speed
- Noise Level: 39 dB(A) low speed; 47 dB(A) high speed at 3 m
- Duct Size: 150 mm inlet and outlet
- Fascia Size: 268 x 268 mm white square fascia
- Fascia Cut-out Size: 238 mm diameter
- External Grille Size: 210 x 210 mm
- External Grille Cut-out: 150 mm diameter
- Electrical Supply: 220–240 V AC, 50 Hz
- Ingress Protection: IPX4
- Installation: Plug and lead included
- Included Ducting: 6 m of 150 mm flexible aluminium duct
- Dimensions (H x L x W): 280mm x 268mm x 268mm
- Weight: 4.6 kg
Key Features
- Premium two-speed mixflow inline exhaust fan
- Long-life ball bearing motor rated for extended continuous operation
- Integrated energy-saving backdraft shutter
- Designed to exhaust steam and condensation directly outdoors
- Suitable for ensuites, bathrooms and laundries
- White square fascia compatible with Ventair Airbus 200 fascias
- Complete kit includes ducting, external grille, air vent adaptor, diffusers, duct tape and cable ties
Professional Installation Requirements
- Installation should be performed by a qualified and licensed electrician. Electrical work must comply with AS/NZS 3000, and the exhaust system must be ducted and discharged to outdoor air. Provide at least 280 mm installation depth and ensure the fan is isolated before servicing.
Applications
- Bathroom and ensuite steam extraction
- Laundry ventilation
- Residential moisture and condensation management
- Commercial bathroom and amenities ventilation
- Long-run ducted air extraction applications
Standards & Compliance
- AS/NZS 3000 for electrical installations and wiring requirements
- AS/NZS 60335.2.80 for the safety of household and similar electrical fans
Environmental Benefits
- Energy-efficient two-speed motor allows reduced power use when lower airflow is suitable
- Ducted discharge helps manage steam and condensation, reducing moisture-related building damage and mould risk
- Long-life ball bearing motor can reduce replacement frequency and product waste
- Aluminium ducting and metal grille components are recyclable through appropriate material recovery streams
Warranty Information
5-year product warranty for domestic use from the original date of purchase, subject to Ventair warranty terms and qualified installation requirements. Commercial use is limited to a maximum 1-year warranty.
Available Now
Available through authorised Ventair distributors in Australia.
