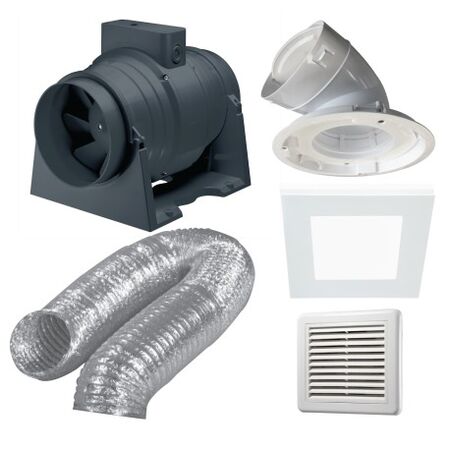

Premium Inline Exhaust Kit Square Tri CCT LED White Ventair

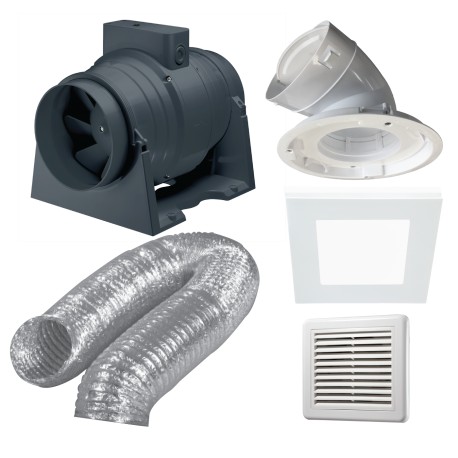

Ventair premium inline exhaust kit with mixflow inline fan, white square fascia with tri-CCT LED, air vent adapter, flexible aluminium duct and exterior grille.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Premium Inline Bathroom Exhaust Kit, 150 mm Inline Exhaust Fan Kit, Square LED Exhaust Fan Kit
Technical Specifications
- Model: VIKWHSQ-LED
- Motor Type: AC mixflow inline fan
- Motor Power: 40 W low speed, 50 W high speed
- Air Delivery: 438 m³/h low speed, 561 m³/h high speed
- Noise Level: 39 dB(A) low speed, 47 dB(A) high speed
- Duct Size: 150 mm inlet and outlet
- LED Light: 10 W tri-colour LED
- Light Output: 1,200 lumens average
- Colour Temperature: 3000 K warm white, 4200 K natural white, 6500 K cool white
- Fascia Size: 268 x 268 mm
- Fascia Cut-out: 238 mm diameter
- IP Rating: IPX4
- Power Input: 220–240 V AC, 50 Hz
- Included Ducting: 6 m of 150 mm flexible aluminium duct
- Minimum Installation Depth: 280 mm
- Dimensions (H x L x W): 247mm x 312mm x 234mm
- Weight: 4.6 kg
Key Features
- High-performance mixflow inline fan for longer duct runs
- Square white fascia with selectable warm, natural or cool white LED lighting
- Integrated energy-saving backdraft shutter
- Long-life ball-bearing motor
- Complete kit with ducting, interior adaptor, exterior grille, duct tape and cable ties
- Two fan speed settings
- AC plug and lead included
- Suitable for bathrooms, ensuites and laundries
Professional Installation Requirements
- Installation involving fixed wiring, ceiling access or electrical connection should be completed by a licensed electrician in accordance with AS/NZS 3000 and the installation instructions. The exhaust must discharge to outdoor air to manage steam and condensation.
Applications
- Bathroom ventilation
- Ensuite ventilation
- Laundry ventilation
- Toilet and sanitary-room exhaust
- Residential ducted air extraction
- Applications requiring integrated LED task lighting
Standards & Compliance
- AS/NZS 60335.2.80:2025, applicable to household and similar electric fans
- AS/NZS 3000 for electrical installation and wiring practices
Environmental Benefits
- 10 W LED lighting reduces energy consumption compared with higher-wattage conventional lamps
- Integrated backdraft shutter helps reduce unwanted air leakage when the fan is not operating
- Ducted extraction helps manage indoor moisture and condensation, supporting healthier building interiors
- Long-life motor construction can reduce replacement frequency and product waste
Warranty Information
Covered by a 5-year Ventair warranty against manufacturing defects, subject to the manufacturer’s terms and correct installation. Commercial-use warranty conditions may differ, and LED components may have a separate limited warranty period.
Available Now
Available through authorised Ventair distributors in Australia.
