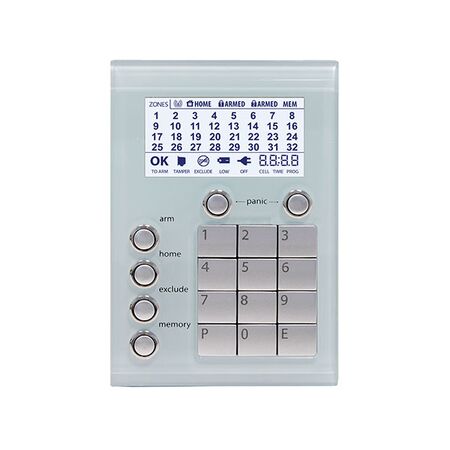

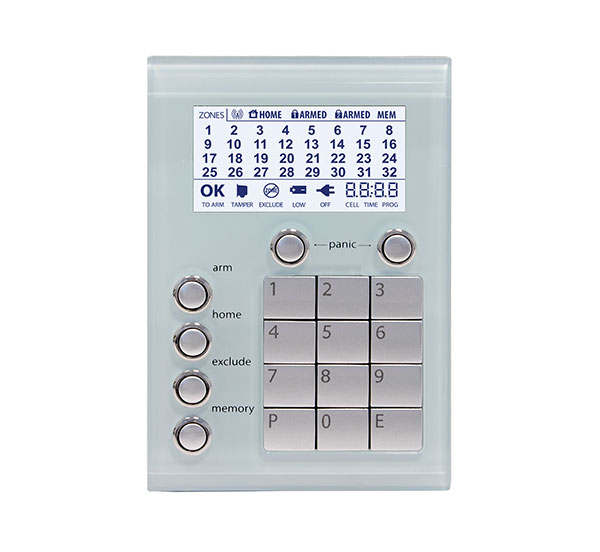

Premium Security Keypad High Contrast LCD Glass-Look Ocean Mist Ness

BRAND: Ness
SKU: 106-323-OMT
$265.70 List price: $354.30
+ −
30 Days Return Electricians Unlock Trade Access
Ness premium security keypad features a high contrast LCD and glass-look fascia in ocean mist. Ideal for alarm systems.

Alternatively Known As: Ness Saturn Keypad, Ness Saturn LCD Keypad, Ness Saturn Premium Keypad, 106-108-OMT

Technical Specifications
  • Model: 106-108-OMT
  • Display Type: High-contrast LCD icon display
  • Backlighting: White and red LCD backlighting, plus adjustable blue keypad backlighting
  • Operating Voltage: 12 VDC supplied by the control panel
  • Compatibility: Ness D8x and D16x control panels, version 6 and later
  • Maximum Keypads: Up to three Saturn keypads per compatible system
  • Fascia: Glossy glass-look finish
  • Controls: Satin-finish tactile buttons with laser-etched graphics
  • Dimensions (H x L x W): 130mm x 15mm x 89mm
  • Weight: 0.5 kg
Key Features
  • High-contrast LCD icon display
  • Glossy glass-look fascia in Ocean Mist
  • White and red LCD backlighting for status and alarm memory indication
  • Adjustable LCD brightness and keypad backlighting
  • Adjustable keypad beep volume
  • Dedicated Panic, Fire and Medical key functions when supported by the control panel
  • Compatible with Ness D8x and D16x security alarm panels
Professional Installation Requirements
  • Installation and connection should be performed by a suitably qualified security or electrical installer in accordance with the Ness installation instructions and applicable alarm-system wiring requirements.
Applications
  • Residential security alarm systems
  • Commercial security alarm systems
  • Ness D8x and D16x control panel installations
  • Replacement or additional keypad installations for compatible Ness alarm systems
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of the associated intruder alarm system
Environmental Benefits
  • Low-voltage 12 VDC operation supports efficient system power consumption
  • Durable keypad construction can help extend service life and reduce replacement waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified.

Available Now

Available through Ness and authorised Australian security-system distributors.
