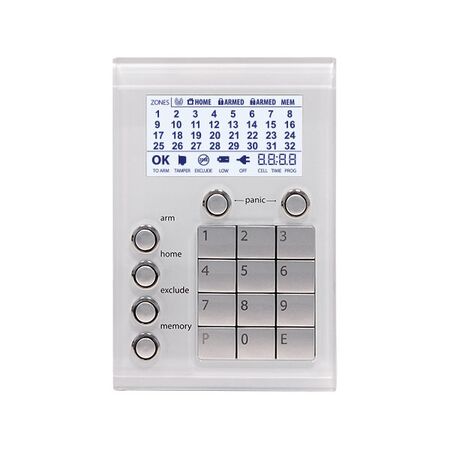

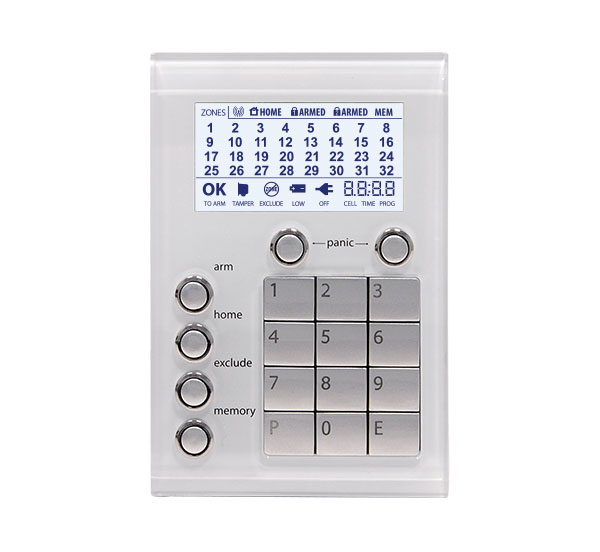

Premium Security Keypad High Contrast LCD Glass-Look White Ness
Ness premium security keypad features a high contrast LCD and glossy glass-look fascia. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Saturn Plus Keypad, Saturn+ LCD Alarm Keypad, White Ness Security Keypad
Technical Specifications
- Model: Saturn+ 106-323-WHT
- Display: High-contrast LCD icon display
- Backlighting: White and red LCD backlighting; red alarm-memory indication
- Operating Voltage: 12 VDC supplied by the control panel
- Compatibility: Ness D8x, D16x, D8XCEL and D16XCEL control panels
- System Capacity: Maximum three Saturn keypads per compatible system
- Controls: Satin-finish tactile buttons with laser-etched graphics
- Adjustments: Keypad beep volume, LCD brightness and blue keypad backlighting
- Included: Keypad, wiring loom, surface backbox and manual
- Dimensions (H x L x W): 130mm x 15mm x 89mm
- Weight: 0.5 kg
Key Features
- Glossy glass-look fascia
- High-contrast LCD icon display
- White and red LCD backlighting
- Red backlighting for alarm memory indication
- Satin-finish tactile buttons
- Laser-etched graphics
- Adjustable keypad beep volume
- Adjustable LCD brightness
- Adjustable blue keypad backlighting
- Supplied with surface mounting backbox
Professional Installation Requirements
- Installation and connection to the alarm control panel should be performed by a qualified security technician in accordance with the Ness installation instructions and applicable wiring requirements.
Applications
- Residential security alarm systems
- Commercial security alarm systems
- Ness D8x and D16x alarm panel installations
- Ness D8XCEL and D16XCEL alarm panel installations
- Replacement or additional keypad for compatible Ness alarm systems
Standards & Compliance
- Applicable system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems — Client’s premises — Design, installation, commissioning and maintenance. Product-specific certification was not stated in the published Ness documentation.
Environmental Benefits
- 12 VDC low-voltage operation supports integration with low-power alarm systems.
- Durable keypad construction may extend service life and reduce replacement waste.
- Ness publishes RoHS compliance documentation for its product range.
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
Available through Ness and authorised Australian security distributors.
