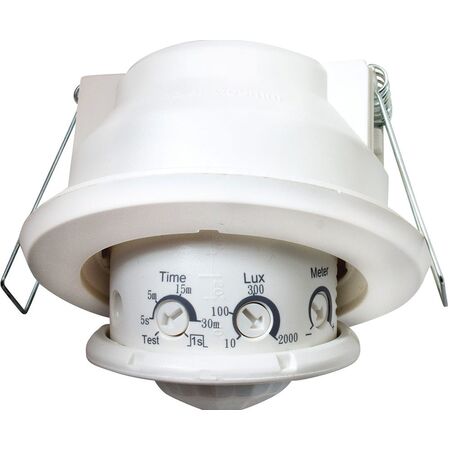

Presence Detector 360° Ceiling Mount | Quad Element Detection | 10m Range | Adjustable Lux Settings | @Each of 1 | by Cabac
The Presence Detector 360° Ceiling Mount is designed for efficient lighting control, featuring quad element detection with a 10-meter range and adjustable lux settings from 10 to 2000 lux. Ideal for residential and commercial applications, this sensor automates lighting based on occupancy, helping to reduce energy consumption and lower your carbon footprint.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Presence Detector 360° Ceiling Mount | Quad Element Detection | 10m Range | Adjustable Lux Settings | @Each of 1 | by Cabac
Brand: Cabac
SKU: CPD-360
Alternatively Known As: 360 Degree Ceiling Presence Sensor, Ceiling Motion Detector, Lighting Presence Sensor
Technical Specifications
- Load Capacity: LED 400W, AC Halogen 1000W, Incandescent 2000W, Fluorescent 900VA
- Detection Range: 10 metres
- Detection Coverage: 360 degrees omni-directional
- Timer Settings: 5 seconds to 30 minutes auto-off
- Lux Adjustment: 10 to 2000 lux
- Sensor Type: Quad element presence detector
- Mounting: Ceiling mount with flush mount feature
- Indicator: Built-in red LED for test operation
- Connection: RJ-12 plug and socket
- Dimensions (H x L x W): 50mm x 80mm x 80mm
- Weight: 0.3 kg
Key Features
- 360-degree omni-directional quad element detection with no dead spot zones
- Adjustable sensor head with 30 degree downward and 350 degrees rotation
- Manual override and auto-off timer adjustable from 5 seconds to 30 minutes
- Lux adjustment range from 10 to 2000 lux
- Detection range up to 10 metres
- Built-in red LED indicator for test operation
- RJ-12 plug and socket for quick installation
- Flush mount design for easy ceiling installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in residential buildings
- Commercial lighting automation
- Office and workspace lighting management
- Energy-saving lighting systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty of 2 years against defects.
Available Now
The Cabac CPD-360 Presence Detector is available for immediate purchase, ideal for energy-efficient lighting control in residential and commercial applications.
