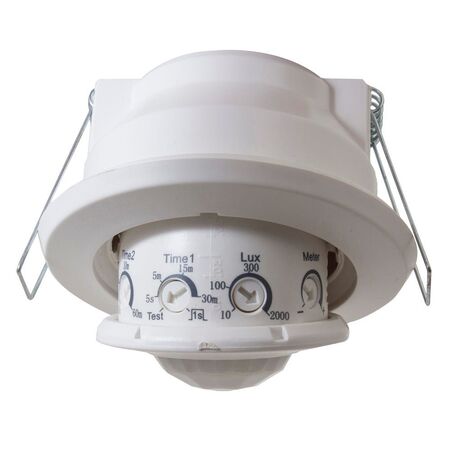

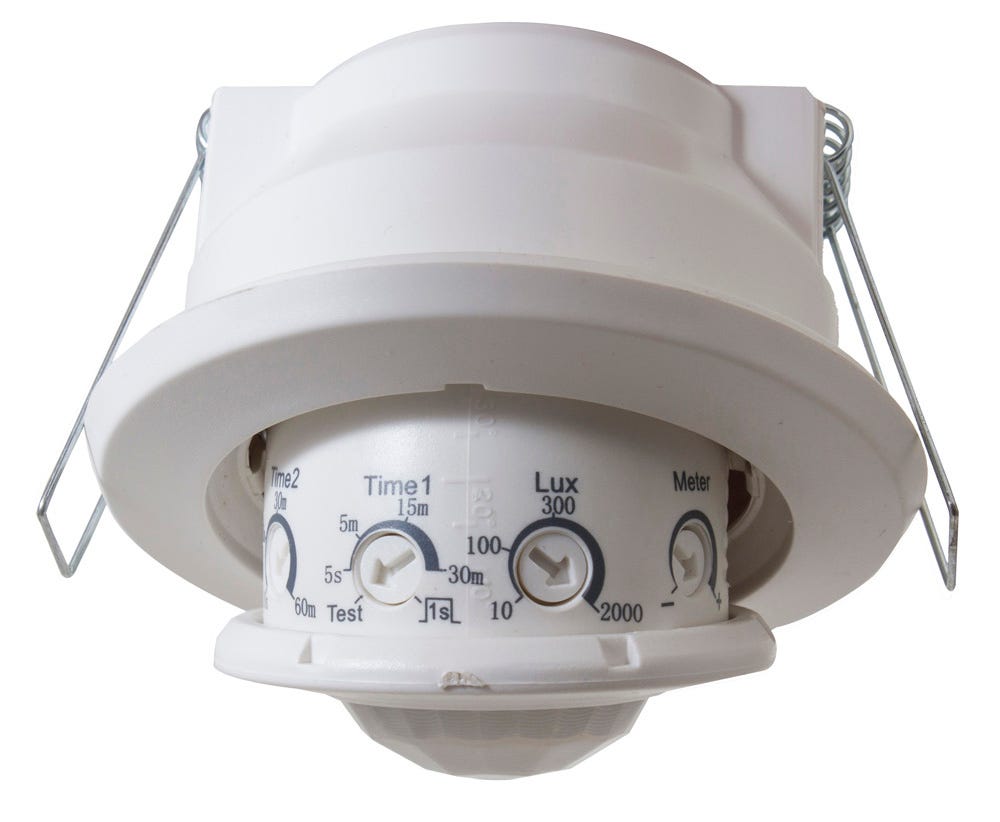

Presence Detector 360° | Dual Channel | 10m Detection Range | Flush Mount Design | @Each of 1 | by Cabac
The Presence Detector 360° is designed for efficient lighting and HVAC control, featuring a dual channel setup and a 10-meter detection range. With its flush mount design, it ensures seamless installation in various ceiling types, making it ideal for both commercial and residential applications. Enjoy energy savings and enhanced comfort with adjustable lux settings and time delays from 5 seconds to 1 hour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Presence Detector 360° | Dual Channel | 10m Detection Range | Flush Mount Design | @Each of 1 | by Cabac
Brand: Cabac
SKU: CPD-360/2
Alternatively Known As: 360 Degree Presence Sensor, Dual Channel Occupancy Sensor, Ceiling Mount Motion Detector
Technical Specifications
- Detection coverage: 360 degrees omni-directional
- Detection range: 10 meters
- Load ratings: LED 400W, AC Halogen 1000W, Incandescent 2000W, Fluorescent 900VA
- Time delay settings: 5 seconds to 1 hour
- Lux adjustment: 10 to 2000 lux
- Relay outputs: 2 channels (lighting and HVAC control)
- Mounting: Ceiling mount with flush mount feature
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Dual load presence detector with two relay outputs for lighting and HVAC control
- 360-degree omni-directional detection with no dead spot zones
- Flush mount design for quick and seamless installation in various ceiling thicknesses
- Manual override with adjustable time delay from 5 seconds to 1 hour
- Lux adjustment range from 10 to 2000 lux with unique lens tilt feature
- Detection range up to 10 meters
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Lighting control in commercial and residential buildings
- HVAC control for heating, ventilation, and air conditioning systems
- Energy management in offices, conference rooms, and public spaces
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on occupancy
- Helps lower carbon footprint through efficient energy management
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Cabac CPD-360/2 Presence Detector is available for immediate purchase, ideal for commercial and residential lighting and HVAC control applications.
