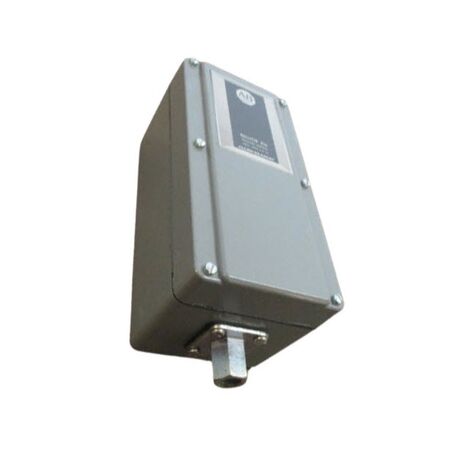

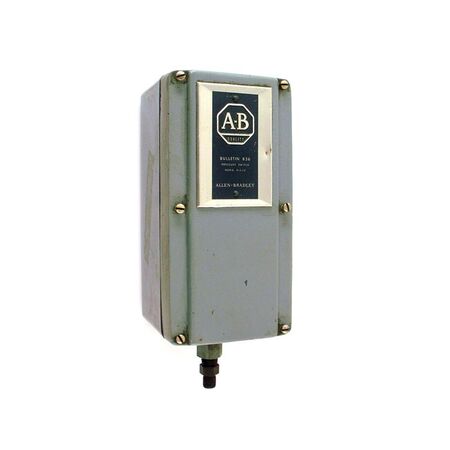

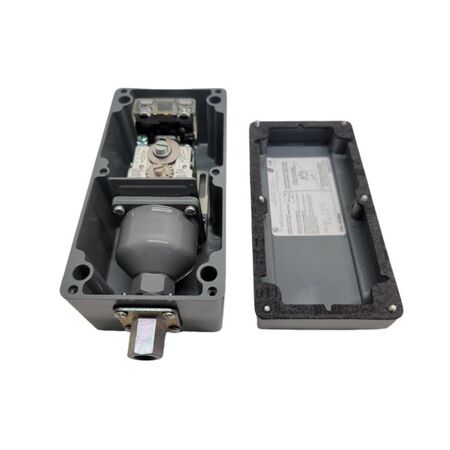

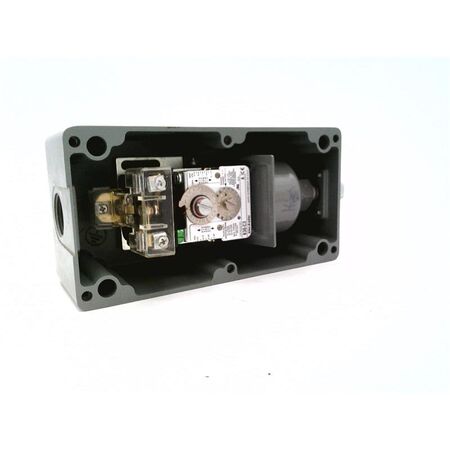

Pressure Control Switch 836C3J | 0.8 to 30 PSI Range | NEMA Type 4 & 13 Enclosure | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 836C3J
$1,144.70 List price: $1,426.50
+ −
30 Days Return Delivery Options
The Pressure Control Switch 836C3J is designed for precise pressure monitoring and control, featuring a range of 0.8 to 30 PSI and a durable NEMA Type 4 & 13 enclosure for protection against dust and water. Ideal for industrial applications, this electro-mechanical switch ensures reliable operation in demanding environments, making it perfect for machinery and equipment requiring effective pressure regulation.
Technical Specifications
  • Pressure range: 0.8 PSI to 30 PSI
  • Maximum pressure: 80 PSI (5.5 bar)
  • Contact type: Standard SPST contact block
  • Enclosure rating: NEMA Type 4 & 13
  • Style: Electro-Mechanical Style C
  • No connector or pilot light included
  • Mountable design
  • Dimensions (H x L x W): 120mm x 80mm x 100mm
  • Weight: 1.2 kg
Key Features
  • Pressure range: 0.8 PSI to 30 PSI
  • NEMA Type 4 & 13 enclosure for protection against dust and water
  • Standard SPST contact block
  • Standard trip/reset setting
  • Mountable design
  • No connector or pilot light included
Professional Installation Requirements
  • Installation should be performed by a qualified technician to ensure proper setup and compliance with safety standards.
Applications
  • Industrial pressure monitoring and control
  • Machinery and equipment requiring pressure regulation
  • Environments needing NEMA Type 4 & 13 protection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable enclosure reduces need for frequent replacements, minimizing waste
  • Supports efficient pressure control to optimize energy use in systems
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 836C3J Pressure Control Switch with enclosure is available for immediate purchase, ideal for industrial and commercial pressure control applications.
