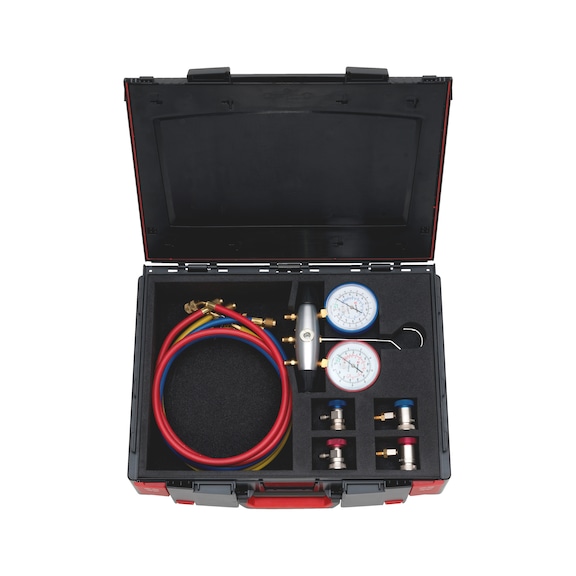

Pressure Gauge Bridge for R134a & R1234yf | Class 1.0 Manometer | Colour-Coded Hoses | by Wurth
The Pressure Gauge Bridge for R134a and R1234yf is essential for testing the working pressure of air-conditioning units. Designed for HVAC professionals, it features a Class 1.0 manometer with continuous calibration checks, ensuring accuracy. With colour-coded hoses for easy differentiation and a fastening hook for convenience, this tool simplifies troubleshooting and refrigerant level assessment in automotive and HVAC systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Gauge Bridge for R134a & R1234yf | Class 1.0 Manometer | Colour-Coded Hoses | by Wurth
Brand: Wurth
SKU: 764000017
Alternatively Known As: Air Conditioning Pressure Gauge, AC Pressure Tester, Refrigerant Pressure Gauge, HVAC Pressure Gauge Bridge
Technical Specifications
- Compatible refrigerants: R134a, R-1234yf
- Product weight: 4.8 kg
- Pressure scale: bar and psi
- Temperature scale: °C and °F
- Hose length: 1.80 m each with ball valves
- Includes colour-coded hoses for low, high, and vacuum/filling pressures
- Dimensions (H x L x W): 100mm x 400mm x 350mm
- Weight: 4.8 kg
Key Features
- Tests the working pressure of air-conditioning units without the need for additional service equipment
- Class 1.0 manometer with continuous calibration checks during manufacture
- Manometer indicators can be readjusted for accuracy
- Colour-coded filling hoses for easy differentiation: low pressure (blue), high pressure (red), vacuum/filling hose (yellow)
- Fastening hook for easier use in engine compartments
- System case 8.4.1 with foam insert for safe storage and easy transport
- Transport and storage fittings protect quick-action couplings from damage and prevent hoses from becoming knotted
- Pressure scale in bar and psi, temperature scale in °C and °F
- High pressure hose (red): 1.80 m with ball valve
- Low pressure hose (blue): 1.80 m with ball valve
- Vacuum/filling hose (yellow): 1.80 m with ball valve
Professional Installation Requirements
- Professional use recommended; installation and testing should be performed by qualified HVAC technicians to ensure safety and accuracy.
Applications
- Testing working pressure of air-conditioning units
- Troubleshooting air-conditioning systems
- Assessing repairs and refrigerant levels in automotive and HVAC air-conditioning units
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps ensure correct refrigerant levels, reducing refrigerant leaks and environmental impact
- Supports maintenance of efficient air-conditioning systems, lowering energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Pressure Gauge Bridge for R134a and R1234yf air conditioning units is available now for immediate purchase. Ideal for automotive and HVAC professionals requiring reliable pressure testing and troubleshooting.
