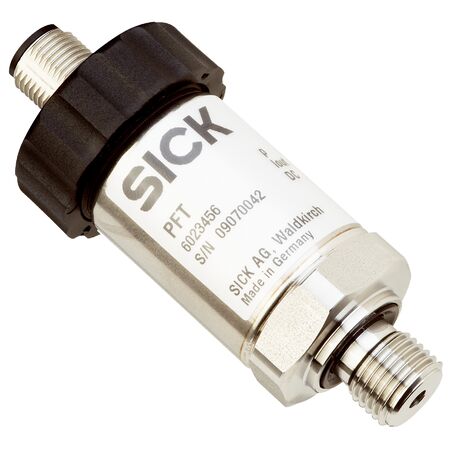

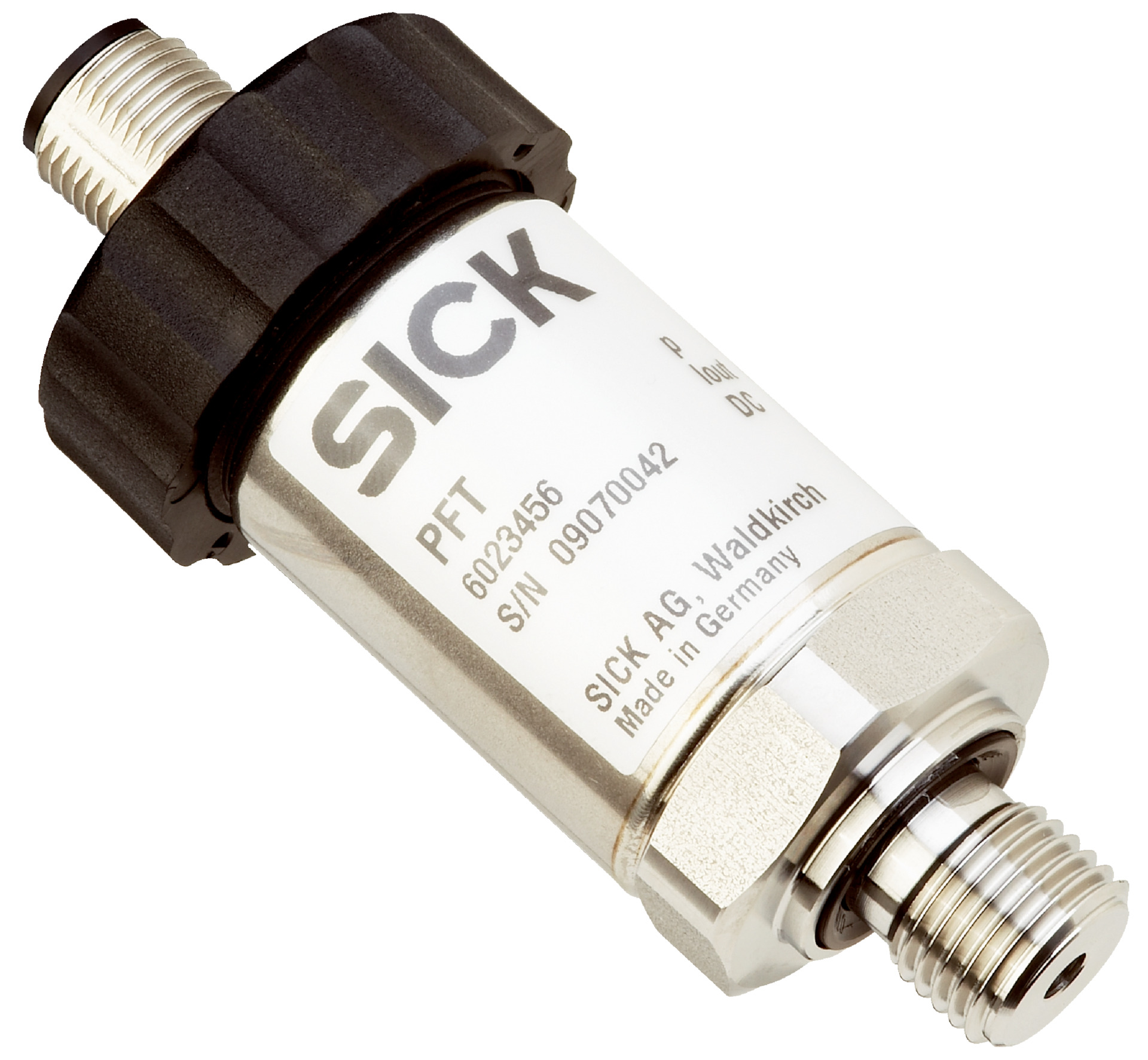

Pressure Sensor | 0-0.6 Bar Gauge Pressure | IP67 Rated | High Accuracy | by SICK
The Pressure Sensor measures gauge pressure from 0 to 0.6 bar, making it ideal for liquid and gaseous media applications. With a robust stainless steel housing and IP67 protection, it ensures high accuracy up to ±0.5% of span and a fast response time of ≤ 1 ms. Perfect for industrial process control, hydraulic, and pneumatic systems, this sensor is built for long service life and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor | 0-0.6 Bar Gauge Pressure | IP67 Rated | High Accuracy | by SICK
Brand: SICK
SKU: 6048552
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, Stainless Steel Pressure Sensor, 0-0.6 bar Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature range: -30 °C to +100 °C
- Output signal: 0 V to 5 V, 3-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: Stainless steel 316Ti membrane
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Response time: ≤ 1 ms
- Accuracy: ≤ ±0.5% of span
- Non-linearity: ≤ ±0.2% of span
- Long-term stability: ≤ ±0.2% of span per year
- MTTF: 452 years
- Shock load: 1000 g IEC 60068-2-27
- Vibration load: 20 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure from 0 to 0.6 bar
- Suitable for liquid and gaseous media
- High accuracy up to ±0.5% of span
- Fast response time ≤ 1 ms
- Robust stainless steel 1.4571 housing with IP67 protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Pressure peak dampening options available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Automation and machinery requiring precise pressure measurement
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 61326 for EMC requirements
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient electronics
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-SRBX60SG1SSAUMSSZ pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise low-range gauge pressure measurement.
