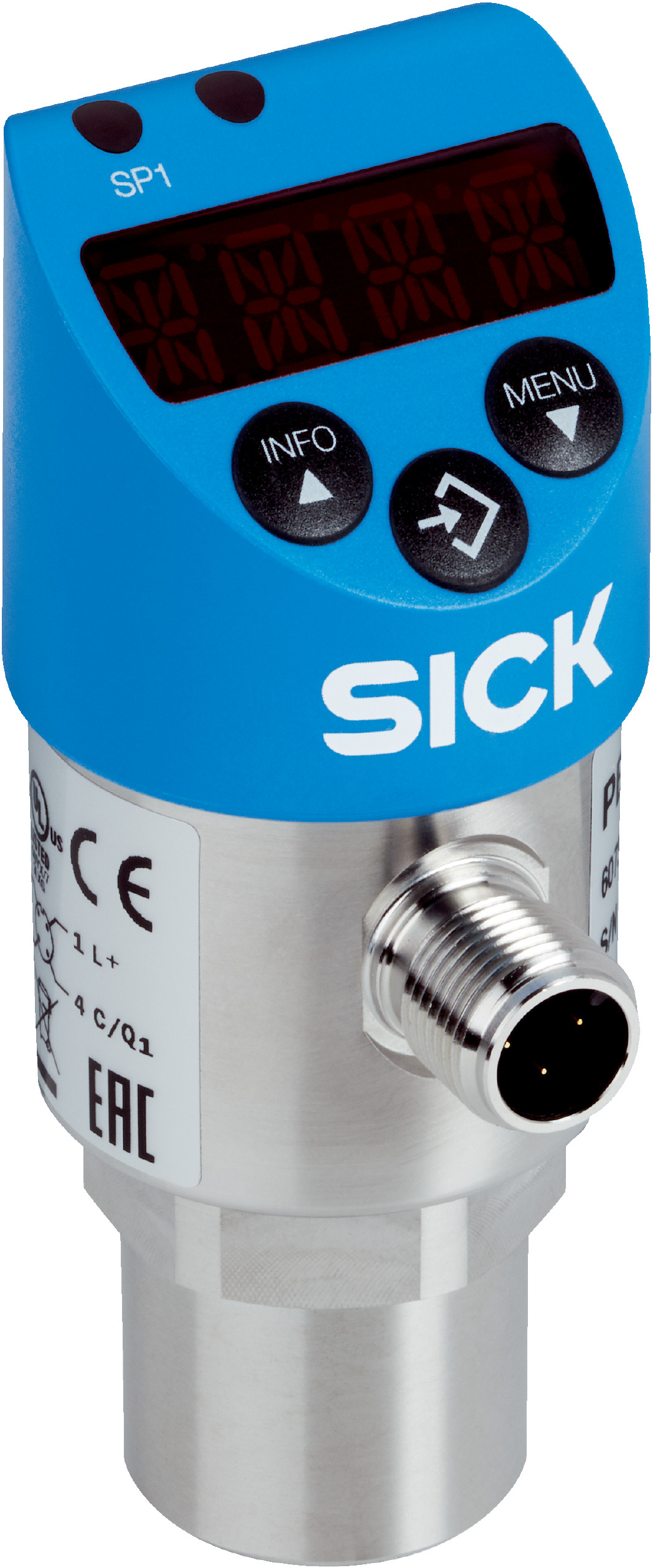

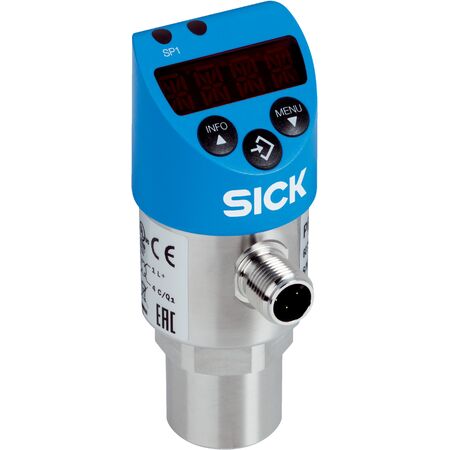

Pressure Sensor PBS2-RBX40SG2SS0NMA0Z | 0 to 0.4 Bar Range | IP67 Rated | by SICK
The PBS2-RBX40SG2SS0NMA0Z pressure sensor is designed for precise gauge pressure measurement in both liquid and gaseous media. With a measuring range from 0 to 0.4 bar and multiple output signals including IO-Link, it’s perfect for industrial process control and automation systems. Built with a durable stainless steel housing and IP67 rated for dust and water protection, this sensor ensures reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBS2-RBX40SG2SS0NMA0Z | 0 to 0.4 Bar Range | IP67 Rated | by SICK
Brand: SICK
SKU: 6073962
Alternatively Known As: Pressure Transmitter, Gauge Pressure Sensor, IO-Link Pressure Sensor, Industrial Pressure Sensor, SICK Pressure Sensor
Technical Specifications
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.22 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 bar to 0.4 bar (0 psi to 6 psi)
- Output signals include IO-Link, PNP, NPN, 4 mA to 20 mA, and 0 V to 10 V
- Rotatable housing with 330° electrical connection rotation and 320° process connection rotation
- 14-segment red LED display with 4 digits and adjustable update rates
- Process connection G ¼ female (EN 837) with stainless steel 316L wetted parts
- Housing made of stainless steel 304 and plastic (PC + ABS)
- Supply voltage range 15 V DC to 35 V DC
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ±0.5% span and non-linearity ≤ ±0.25%
- Fast response time ≤ 5 ms
- Long service life with minimum 100 million load cycles
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication and pressure port integration.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption (45 mA to 70 mA) supports energy efficiency
- Compliance with RoHS directive ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBS2-RBX40SG2SS0NMA0Z pressure sensor is available for immediate purchase, ideal for industrial automation and process control applications.
