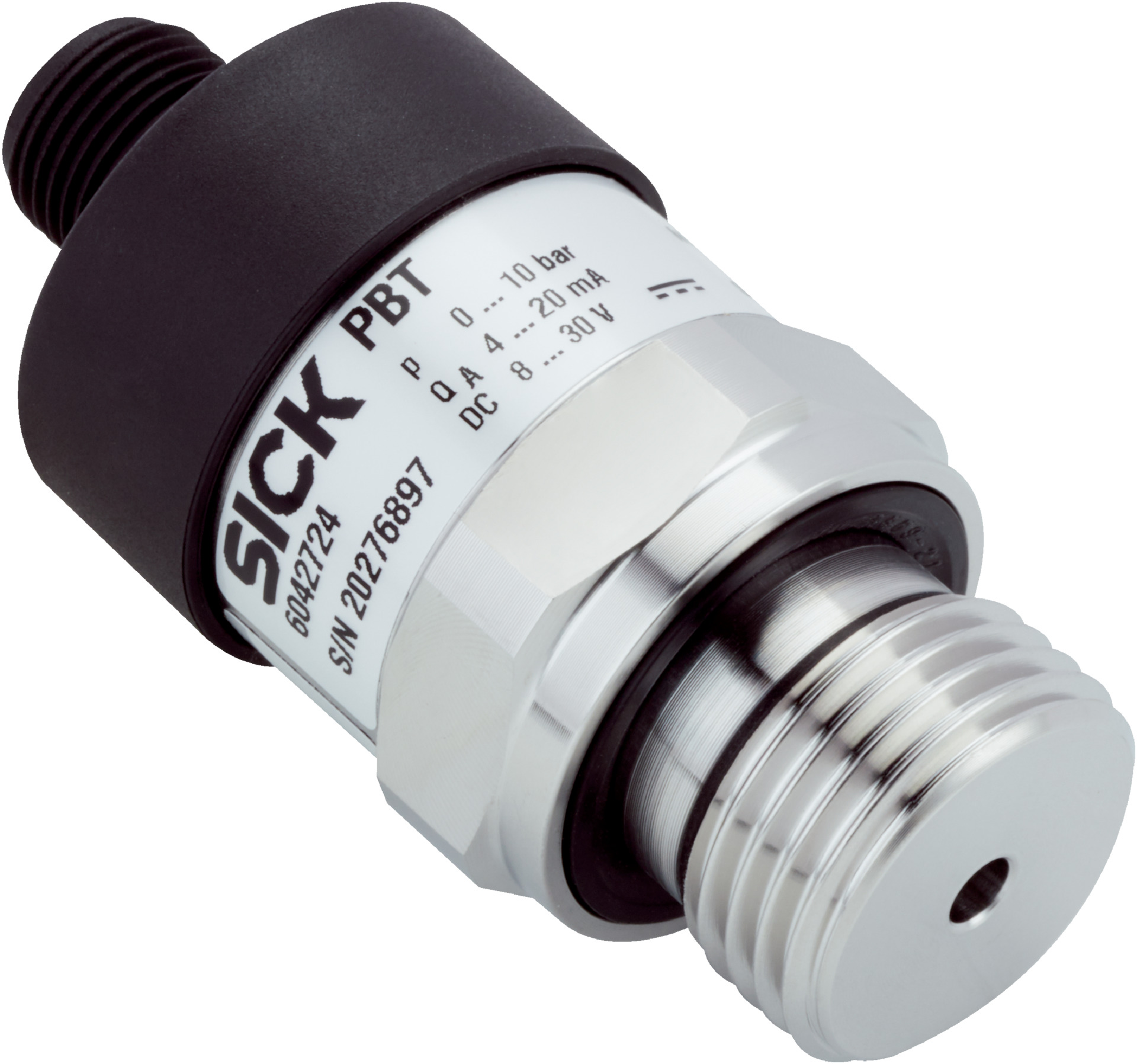

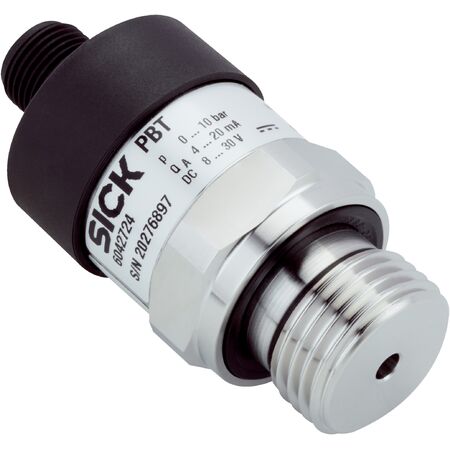

Pressure Sensor PBT-RM1X6SM2SE0ALA0Z | 0 to 1.6 MPa Range | Stainless Steel | IP65 Rated | by SICK
The PBT-RM1X6SM2SE0ALA0Z pressure sensor is designed for precise gauge pressure measurement in both liquid and gaseous media, featuring a measuring range from 0 MPa to 1.6 MPa. Built with durable stainless steel and an IP65 enclosure, it ensures reliability in industrial process control and automation systems. With a fast response time under 4 ms and high accuracy, this sensor is perfect for hydraulic and pneumatic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBT-RM1X6SM2SE0ALA0Z | 0 to 1.6 MPa Range | Stainless Steel | IP65 Rated | by SICK
Brand: SICK
SKU: 6044556
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Dimensions (H x L x W): 70mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 MPa to 1.6 MPa
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: M20 x 1.5 (DIN 16288)
- Wetted parts made of stainless steel 316L
- Housing made of stainless steel with IP65 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- Long service life with minimum 100 million load cycles
- Operating temperature range 0 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBT-RM1X6SM2SE0ALA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring accurate pressure measurement.
