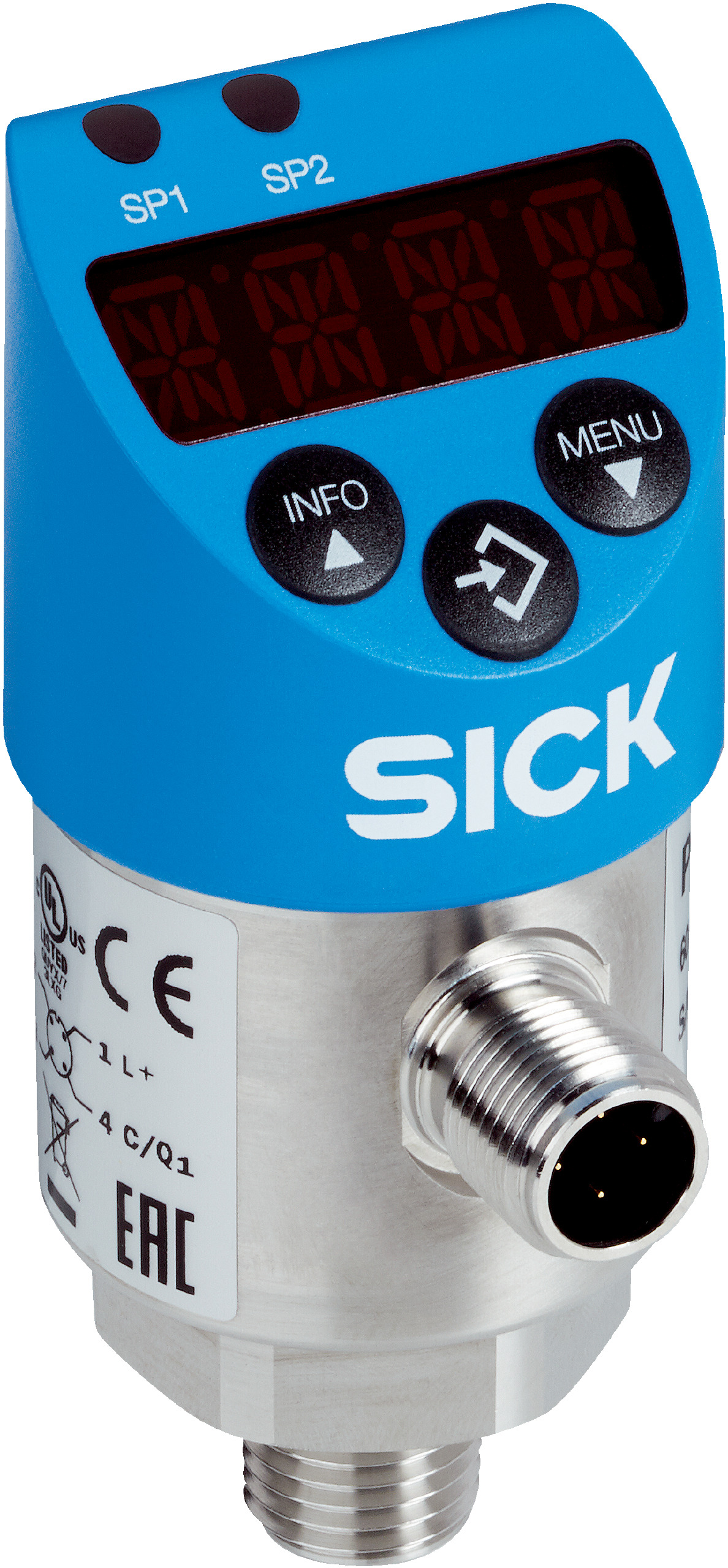

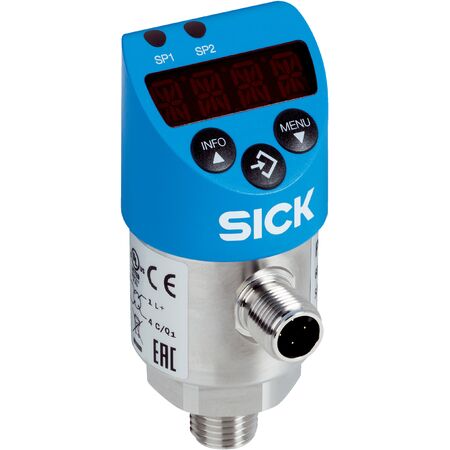

Pressure Sensor PBS2-RB1K0SN1SS0LMA0Z | 0 to 1000 Bar Range | High Accuracy | IP67 Rated | by SICK
The PBS2-RB1K0SN1SS0LMA0Z pressure sensor is designed for precise gauge pressure measurement in both liquid and gaseous media, featuring a wide measuring range from 0 to 1000 bar. With high accuracy of ≤ ±0.5% span and a fast response time of ≤ 5 ms, it's perfect for industrial process control and hydraulic systems. Built with robust stainless steel and an IP67 rated enclosure, this sensor ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBS2-RB1K0SN1SS0LMA0Z | 0 to 1000 Bar Range | High Accuracy | IP67 Rated | by SICK
Brand: SICK
SKU: 6073933
Alternatively Known As: Industrial pressure sensor, gauge pressure transmitter, IO-Link pressure sensor, stainless steel pressure sensor
Technical Specifications
- Dimensions (H x L x W): 80mm x 100mm x 30mm
- Weight: 0.22 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Wide measuring range from 0 bar to 1000 bar (0 psi to 14,504 psi)
- High accuracy with ≤ ±0.5% span including non-linearity and hysteresis
- Fast response time of ≤ 5 ms
- Rotatable housing with 14-segment red LED display, electronically rotatable by 180°
- Communication via IO-Link V1.1 with PNP/NPN output options
- Robust stainless steel 316L wetted parts and housing lower body
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Pressure peak dampening integrated for stable readings
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct electrical connections and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
- Use in hazardous environments requiring robust sensor solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (45 mA to 70 mA) supports energy efficiency
- Compliance with RoHS directive ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBS2-RB1K0SN1SS0LMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable and accurate pressure measurement.
