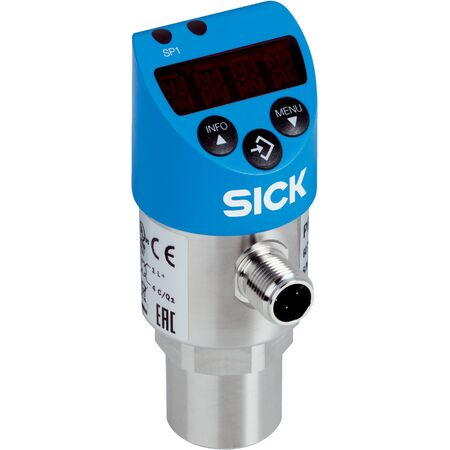

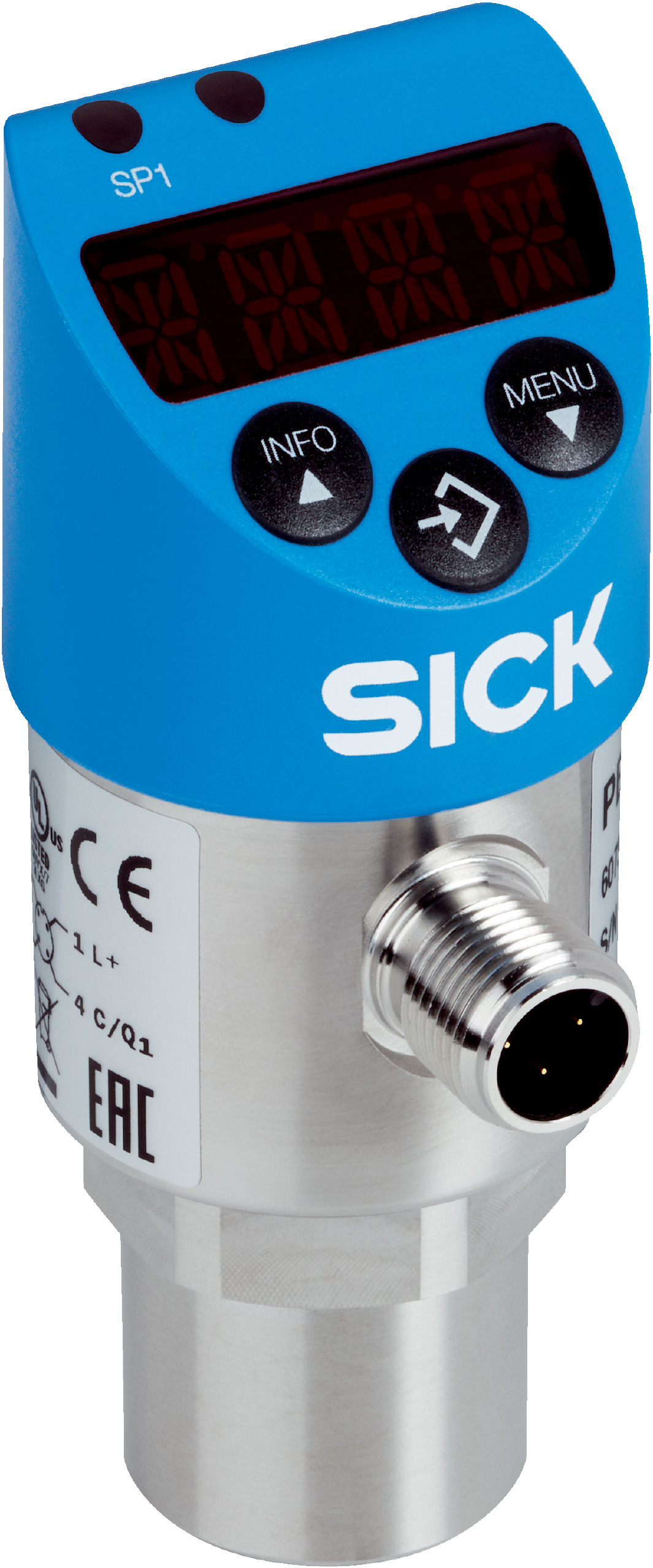

Pressure Sensor PBS2-RB2X5SG2SS0NMA0Z | 0 to 2.5 Bar Range | IO-Link & PNP Output | IP67 Rated | by SICK
The PBS2-RB2X5SG2SS0NMA0Z pressure sensor is designed for precise gauge pressure measurement in both liquid and gaseous media. With a pressure range of 0 to 2.5 bar and multiple output signals including IO-Link and PNP, it’s perfect for industrial process control and automation systems. Built with durable stainless steel and featuring an IP67 protection rating, this sensor ensures reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBS2-RB2X5SG2SS0NMA0Z | 0 to 2.5 Bar Range | IO-Link & PNP Output | IP67 Rated | by SICK
Brand: SICK
SKU: 6073966
Alternatively Known As: Pressure transmitter, gauge pressure sensor, IO-Link pressure sensor, industrial pressure sensor, SICK pressure transducer
Technical Specifications
- Dimensions (H x L x W): 80mm x 60mm x 30mm
- Weight: 0.22 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 bar to 2.5 bar (0 psi to 36 psi)
- Output signals include IO-Link, PNP, NPN, 4 mA to 20 mA, and 0 V to 10 V
- Rotatable housing with 330° display rotation and 320° housing rotation
- 14-segment red LED display with 4 digits and adjustable update rates
- Process connection G ¼ female (EN 837) with stainless steel 316L wetted parts
- Housing made of stainless steel 304 and durable plastic materials
- Supply voltage range from 15 V DC to 35 V DC
- Protection rating IP67 for dust and water resistance
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- High accuracy with ≤ ±0.5% of span and non-linearity ≤ ±0.25%
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication and electrical safety compliance.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring precise gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption supports energy efficiency
- Compliance with RoHS directive ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBS2-RB2X5SG2SS0NMA0Z pressure sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise pressure measurement.
