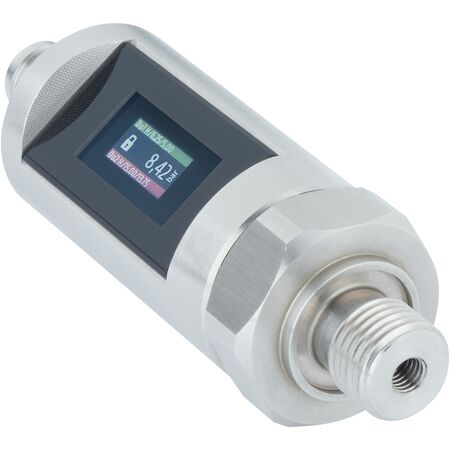

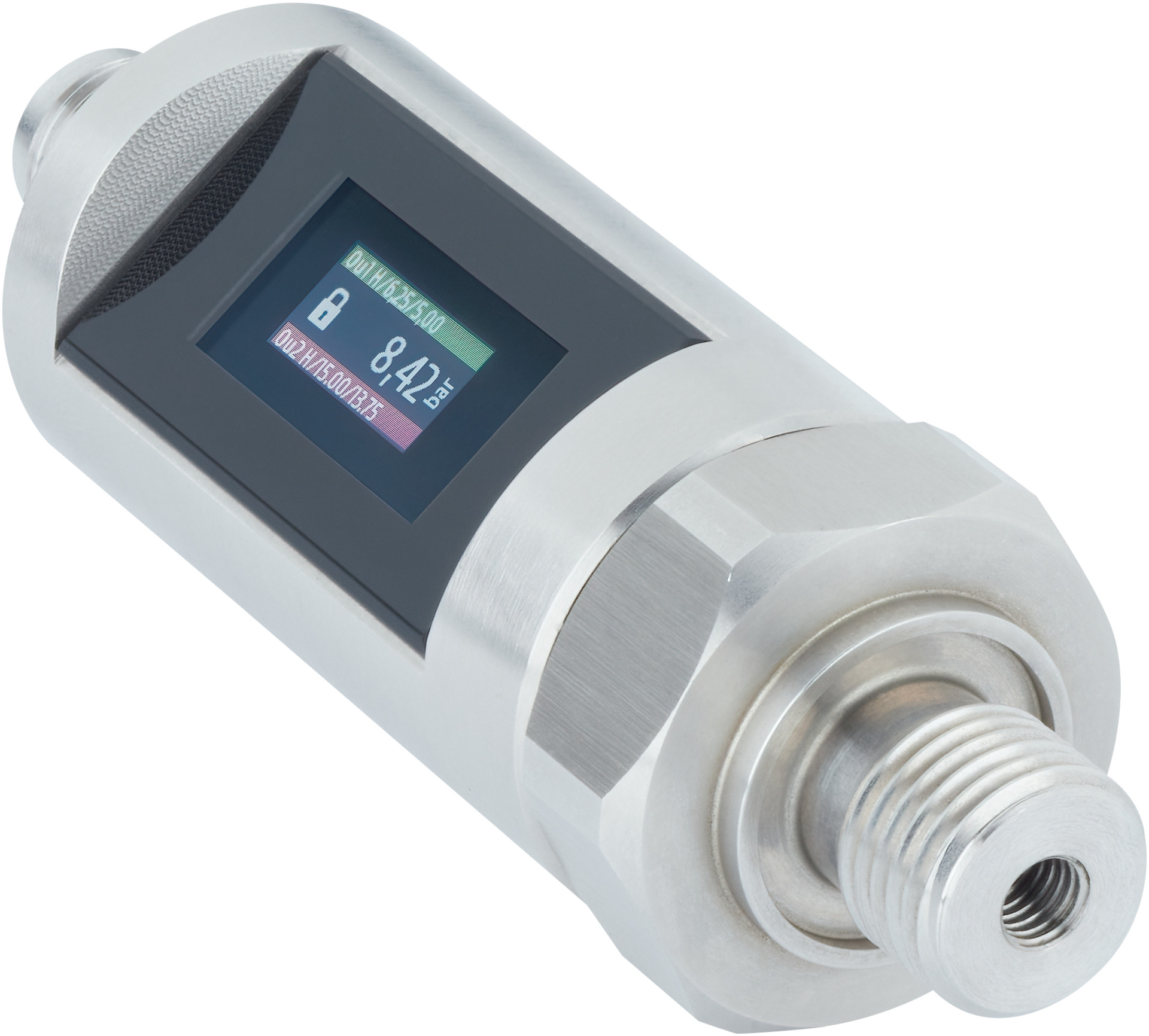

Pressure Sensor PBST-RB025SN1SSEQMA0Z | 0 to 25 Bar Range | IP65/IP67/IP68 Rated | 0.96" TFT Display | by SICK
The PBST-RB025SN1SSEQMA0Z pressure sensor measures gauge pressure from 0 to 25 bar, featuring a 0.96" TFT color display for easy reading. Ideal for industrial process control and automation systems, it offers multiple output options including IO-Link and analog signals, ensuring high accuracy and fast response times. Built with robust stainless steel housing and IP65/IP67/IP68 ratings, this sensor is designed for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBST-RB025SN1SSEQMA0Z | 0 to 25 Bar Range | IP65/IP67/IP68 Rated | 0.96" TFT Display | by SICK
Brand: SICK
SKU: 6088783
Alternatively Known As: Pressure transmitter, gauge pressure sensor, IO-Link pressure sensor, industrial pressure sensor
Technical Specifications
- Measuring range: 0 to 25 bar gauge pressure
- Pressure units switchable: bar, psi, MPa, kPa, mmH2O, mmHg, %
- Process temperature range: -25 °C to +100 °C
- Output signals: PNP/NPN/PP, IO-Link, analog 4-20 mA, 0-10 V, 1-10 V
- Communication interface: IO-Link
- Process connection: ¼'' NPT
- Wetted parts: 316L stainless steel, Al2O3 ceramic measuring chamber, EPDM seals
- Housing material: stainless steel 1.4301/1.4305 with glass display
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 30 mA
- Enclosure rating: IP65, IP67, IP68
- Accuracy: ≤ ±0.5%
- Response time: < 3 ms
- Operating ambient temperature: -25 °C to +80 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 60mm x 40mm
- Weight: 0.19 kg
Key Features
- Measures gauge pressure from 0 to 25 bar with multiple unit options
- 0.96" TFT color display with touch function for easy reading
- Rotatable housing with 350° adjustment for display orientation
- Output options include PNP/NPN/PP, IO-Link, and analog signals
- High accuracy of ≤ ±0.5% with fast response time under 3 ms
- Robust stainless steel housing with IP65, IP67, and IP68 ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with 100 million load cycles and 478 years MTTF
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption under 30 mA reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK PBST-RB025SN1SSEQMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
