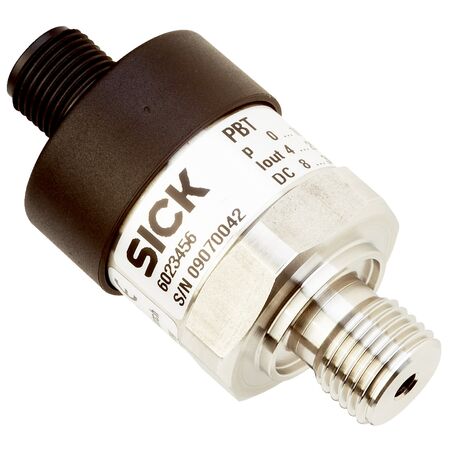

Pressure Sensor PBT-RB025SN1SE0AMA0V | 0 to 25 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The PBT-RB025SN1SE0AMA0V pressure sensor is designed for precise gauge pressure measurement in industrial applications. With a measuring range of 0 to 25 bar and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Built with stainless steel housing, it offers durability and high accuracy, making it ideal for hydraulic and pneumatic systems monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBT-RB025SN1SE0AMA0V | 0 to 25 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 6088248
Alternatively Known As: Pressure transmitter, Pressure transducer, Industrial pressure sensor, Gauge pressure sensor, 4-20mA pressure sensor
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature range: -30 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: ¼'' NPT stainless steel 316L
- Housing material: Stainless steel 316L
- Electrical safety: Overvoltage protection up to 36 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP67
- Response time: less than 4 ms
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Vibration resistance: 20 g
- Shock load: 500 g
- MTTF: 815 years
- Power consumption: max 25 mA for current output
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 25 bar
- Vibration resistance up to 20 g
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: ¼'' NPT stainless steel
- Housing made of stainless steel 316L
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time under 4 ms
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Machinery and equipment pressure measurement
- Automation systems requiring gauge pressure sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption minimizes energy use
- High accuracy reduces process errors and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PBT-RB025SN1SE0AMA0V pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise gauge pressure measurement.
