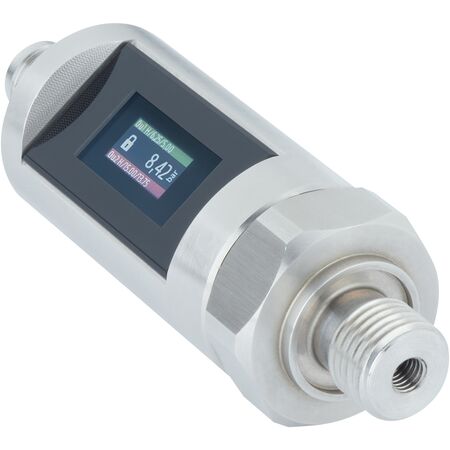

Pressure Sensor PBST-RB040SG1SSEQMA0Z | 0 to 40 Bar Range | IP65/IP67/IP68 Rated | High Accuracy | by SICK
The PBST-RB040SG1SSEQMA0Z Pressure Sensor is designed for precise gauge pressure measurement in industrial applications, measuring from 0 to 40 bar. With a robust stainless steel housing and IP65/IP67/IP68 protection ratings, it ensures durability and reliability. Ideal for liquid and gaseous media, this sensor features a fast response time under 3 ms and a high accuracy of ≤ ±0.5%, making it perfect for automation systems and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pressure Sensor PBST-RB040SG1SSEQMA0Z | 0 to 40 Bar Range | IP65/IP67/IP68 Rated | High Accuracy | by SICK
Brand: SICK
SKU: 6088725
Alternatively Known As: Pressure Transmitter, Gauge Pressure Sensor, IO-Link Pressure Sensor, Industrial Pressure Transducer
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar (switchable to psi, MPa, kPa, mmH2O, mmHG, %)
- Measuring range: 0 bar to 40 bar
- Process temperature range: –25 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA (RA ≤ 0.5 kOhm), 0 V to 10 V, 3-wire (RA > 10 kOhm)
- Zero point adjustment: Max. +3% of span
- Output signals: Output 1 (pin 4) PNP/NPN/PP or IO-Link; Output 2 (pin 2) PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (freely scalable up to max. 5:1)
- Rotatable housing: 350° with display opposite process connection
- Communication interface: IO-Link
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel, Al2O3 96% ceramics, EPDM seals
- Pressure port: M5 internal thread for pressure spike restrictor
- Housing material: Stainless steel 1.4301/1.4305, glass display, PE display seal
- Connection type: M12 round connector, 4-pin
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 30 mA
- Total current consumption: 400 mA (max. 200 mA per output)
- Electrical safety: Protection class III, overvoltage protection 32 V DC, short-circuit resistance, reverse polarity protection
- Accuracy: ≤ ±0.5%
- Response time: < 3 ms
- Long-term drift/one-year stability: ≤ 0.1% FS/K
- Temperature coefficient: ±1.5% FS (<100 bar), ±2.5% (≥100 bar)
- Rated temperature range: –25 °C to +80 °C
- Service life: 100 million load cycles
- Enclosure rating: IP65, IP67, IP68
- MTTF: 478 years
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.19 kg
Key Features
- Measures gauge pressure from 0 to 40 bar
- 0.96" TFT color display with touch function for easy reading
- Rotatable housing with 350° adjustment
- Output options include PNP/NPN/PP, IO-Link, and analog signals
- High accuracy of ≤ ±0.5%
- Robust stainless steel housing with IP65, IP67, and IP68 protection ratings
- Fast response time under 3 ms
- Long service life with 100 million load cycles
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption under 30 mA
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBST-RB040SG1SSEQMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise pressure measurement.
